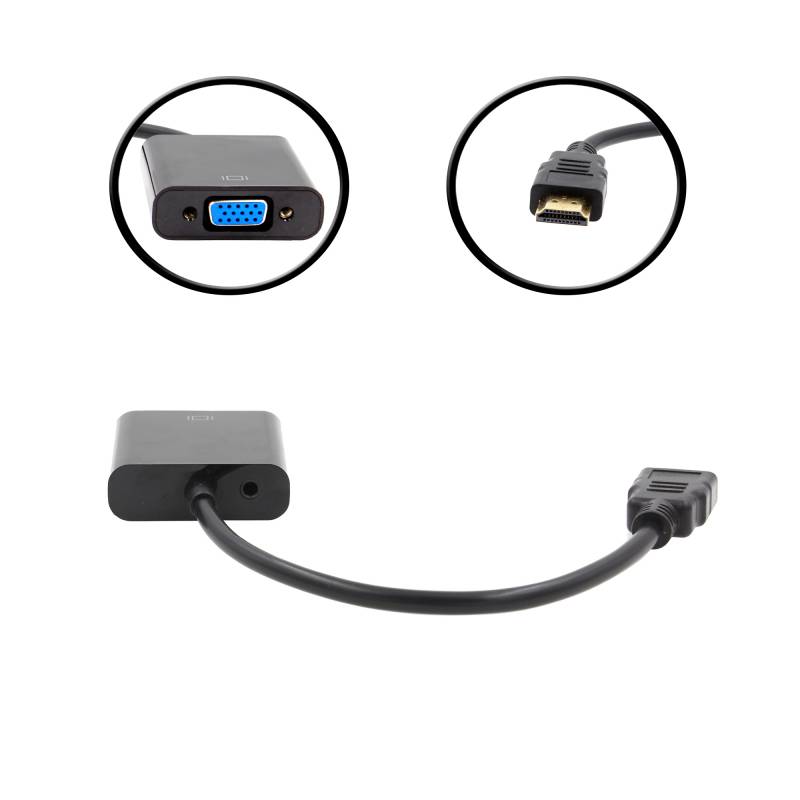

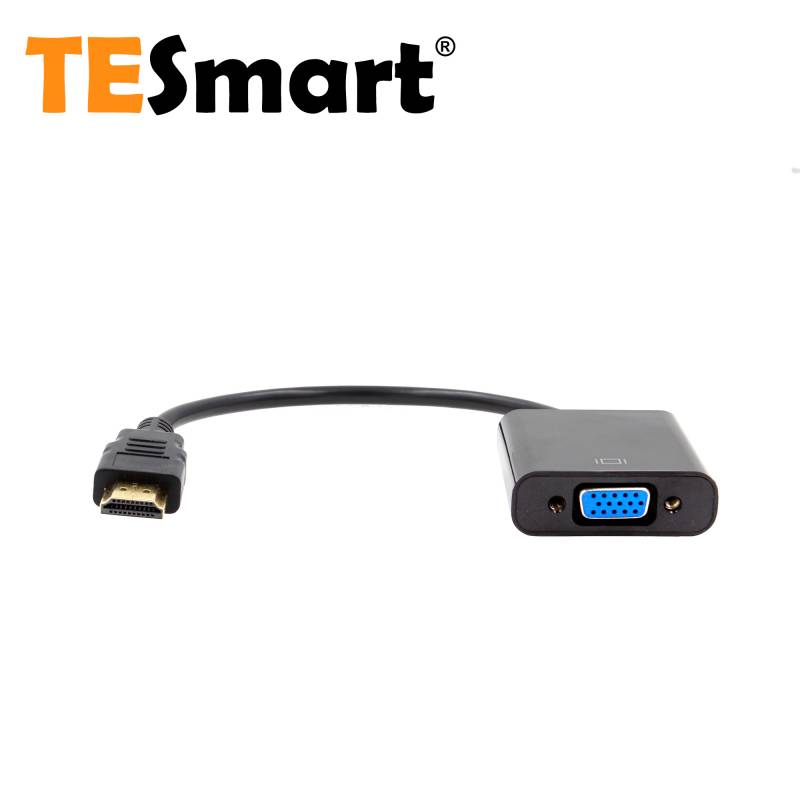

HDMI to VGA Adapter

#H2V0101W01

This product is HDMI to VGA adapter, converts HDMI signal to VGA signal. With the use of the adapter, the output signal can be connected to the VGA input, for example monitors, projectors and other devices. And the synchronous L/R audio is available from AUX jack.

List price： 0.00

Price： 0.00

#H2V0101W01

This product is HDMI to VGA adapter, converts HDMI signal to VGA signal. With the use of the adapter, the output signal can be connected to the VGA input, for example monitors, projectors and other devices. And the synchronous L/R audio is available from AUX jack.

Download the specification

Features

l Plug and play, easy to use

l Power supply from HDMI cable

l Automatically color space conversion

l Support input and output resolution up to 1920*1080@60Hz

l Well anti-interference ability

l Support L/R audio output

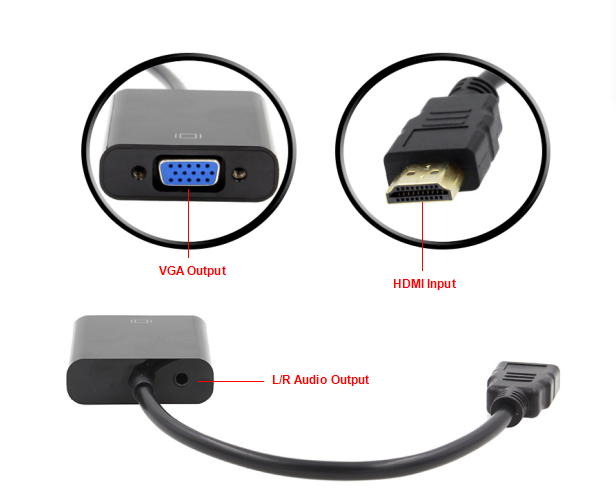

Panel Description

Note:The conversion of the product is unidirectional, should not be used as VGA to HDMI converter.

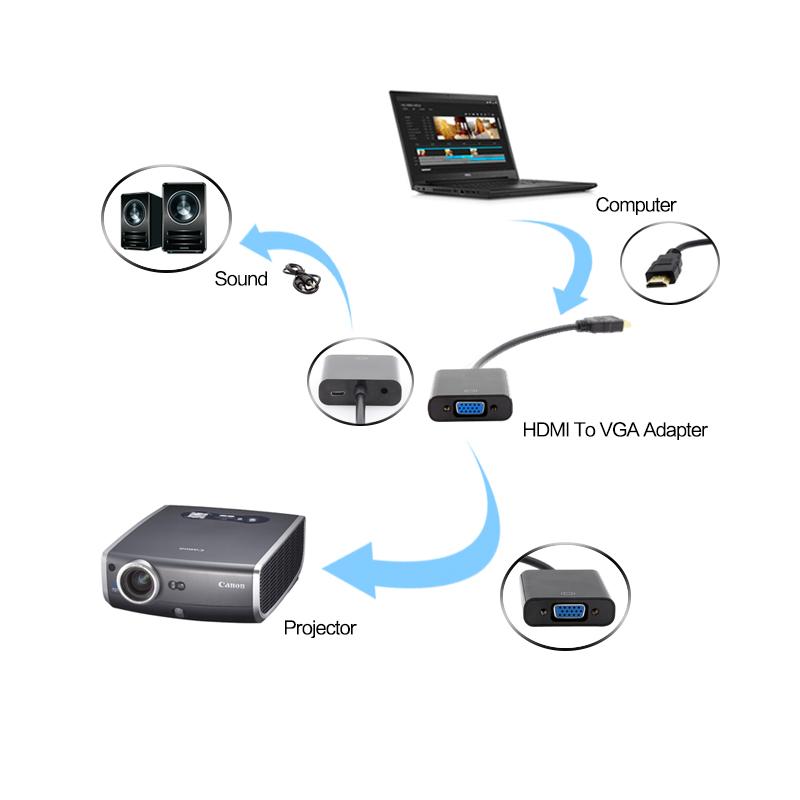

Connection Diagram

Specification

H2V0101W01	HDMI to VGA Adapter
Technical:
HDCP compliance	Yes
Data rate	10.2 Gbps
Max. Resolution	1920x1080@60Hz
ESD protection	Human body model - ±8kV (Air-gap discharge)
Input	1*HDMI Type A
Output	1* VGA, 1*3.5mm Aux(Audio output)
Mechanical:
Chasing material	Plastic
Product Dimensions	250 (L) x 45 (W) x 15 (H) mm
Item Weight	55g
Power supply	DC 5V 1A
Operating/Storage temperature	0 to 70 degree/-40 to 85 degree
Operating Humidity	10 to 90% RH
