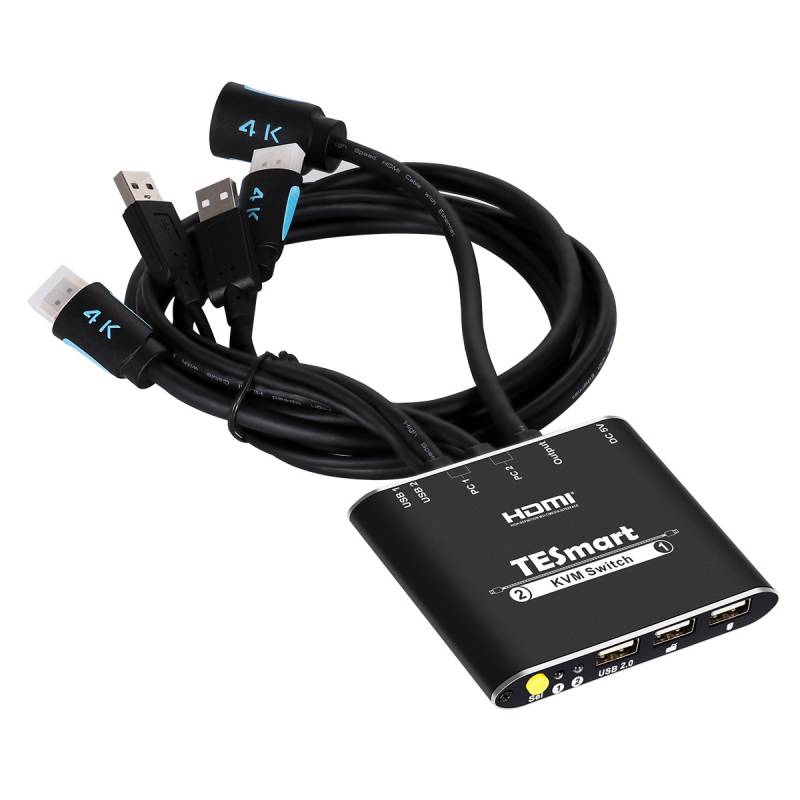

2x1 HDMI Cable KVM Switch

2x1 HDMI Cable KVM Switch

#HKS0201C10

This 2x1 HDMI Cable KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between two HDMI computers using one HDMI compliant display.

This 2x1 HDMI Cable KVM Switch with two HDMI cable connected to HDMI input port. It makes you available to connect HDMI sources directly. Support USB 2.0 hub and USB 2.0 keyboard/mouse, by using USB port on the KVM, you can connect USB drive, printer, barcode scanner or other USB devices to the KVM. The switch can be control by keyboard hot keys and front panel input selection button.


0.00
0.00


#HKS0201C10

This 2x1 HDMI Cable KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between two HDMI computers using one HDMI compliant display.

This 2x1 HDMI Cable KVM Switch with two HDMI cable connected to HDMI input port. It makes you available to connect HDMI sources directly. Support USB 2.0 hub and USB 2.0 keyboard/mouse, by using USB port on the KVM, you can connect USB drive, printer, barcode scanner or other USB devices to the KVM. The switch can be control by keyboard hot keys and front panel input selection button.



 Features


●Using only 1 set of keyboard, mouse and monitor to control 2 host devices
●Support auto switching to monitor devices in a specified time interval
●Support keyboard hot keys to control KVM switch

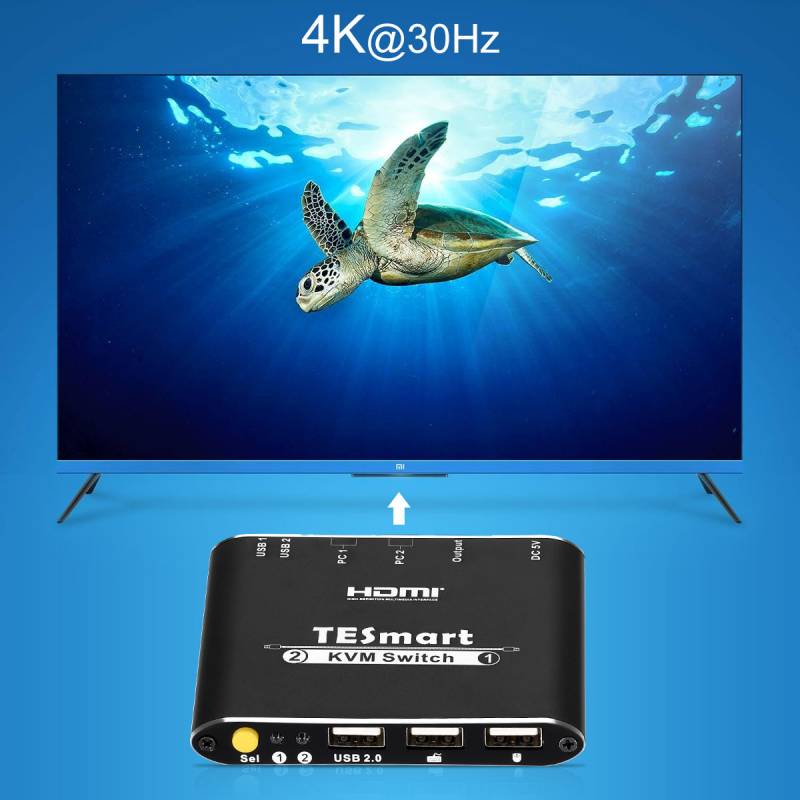

●Support resolution up to 4K@30Hz
●Support USB 2.0 port for printers, barcode scanner, USB drives etc
●Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system
●Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
● Power supply from HDMI cable

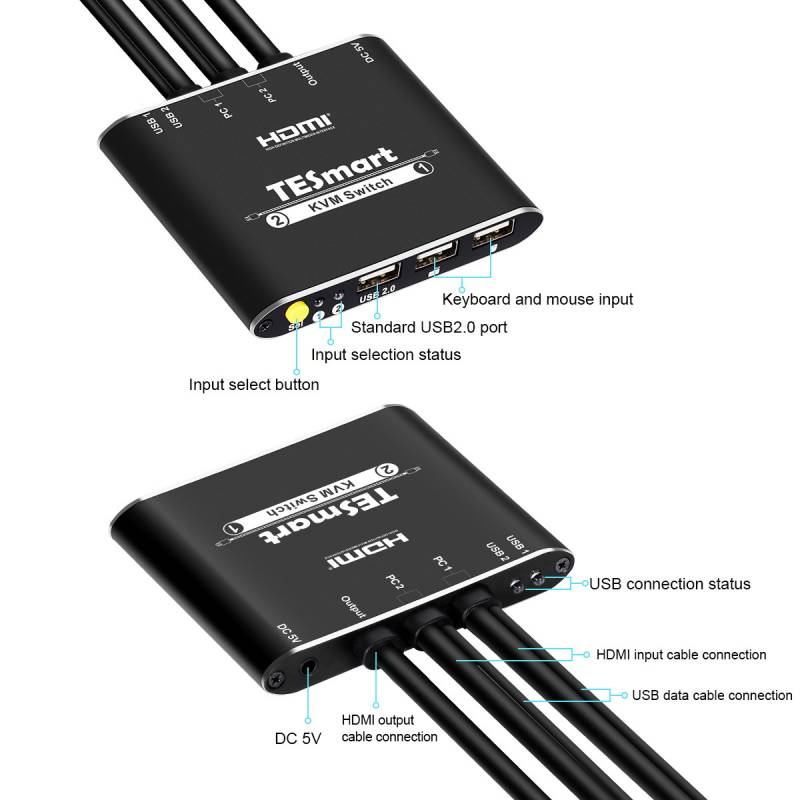

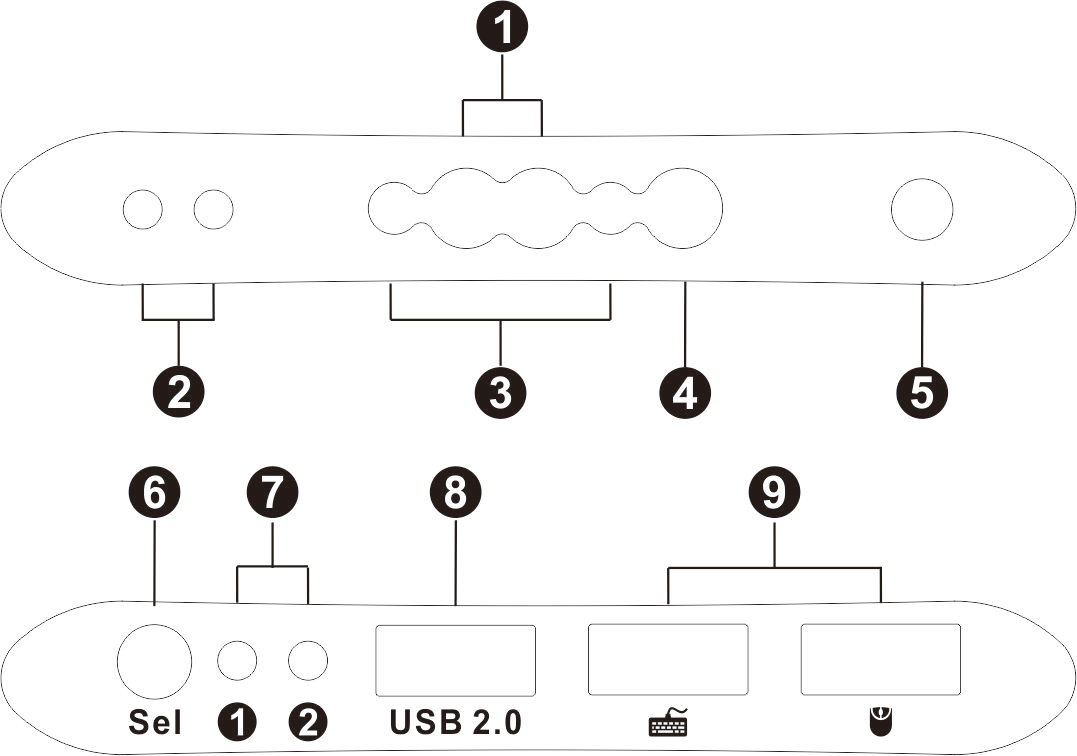

  Panel Description









        1.HDMI input cable connection                                   6.Input select button
       2.USB connection status                                             7.Input selection status
       3.USB data cable connection                                      8.Standard USB2.0 port
       4.HDMI output cable connection                                 9.Keyboard and mouse input
         5.DC 5V

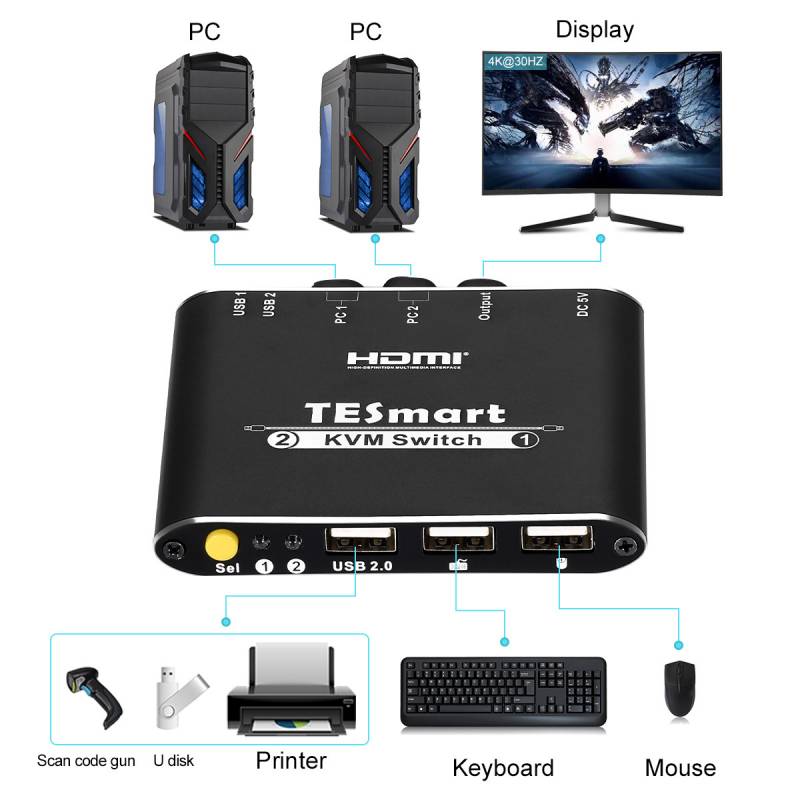

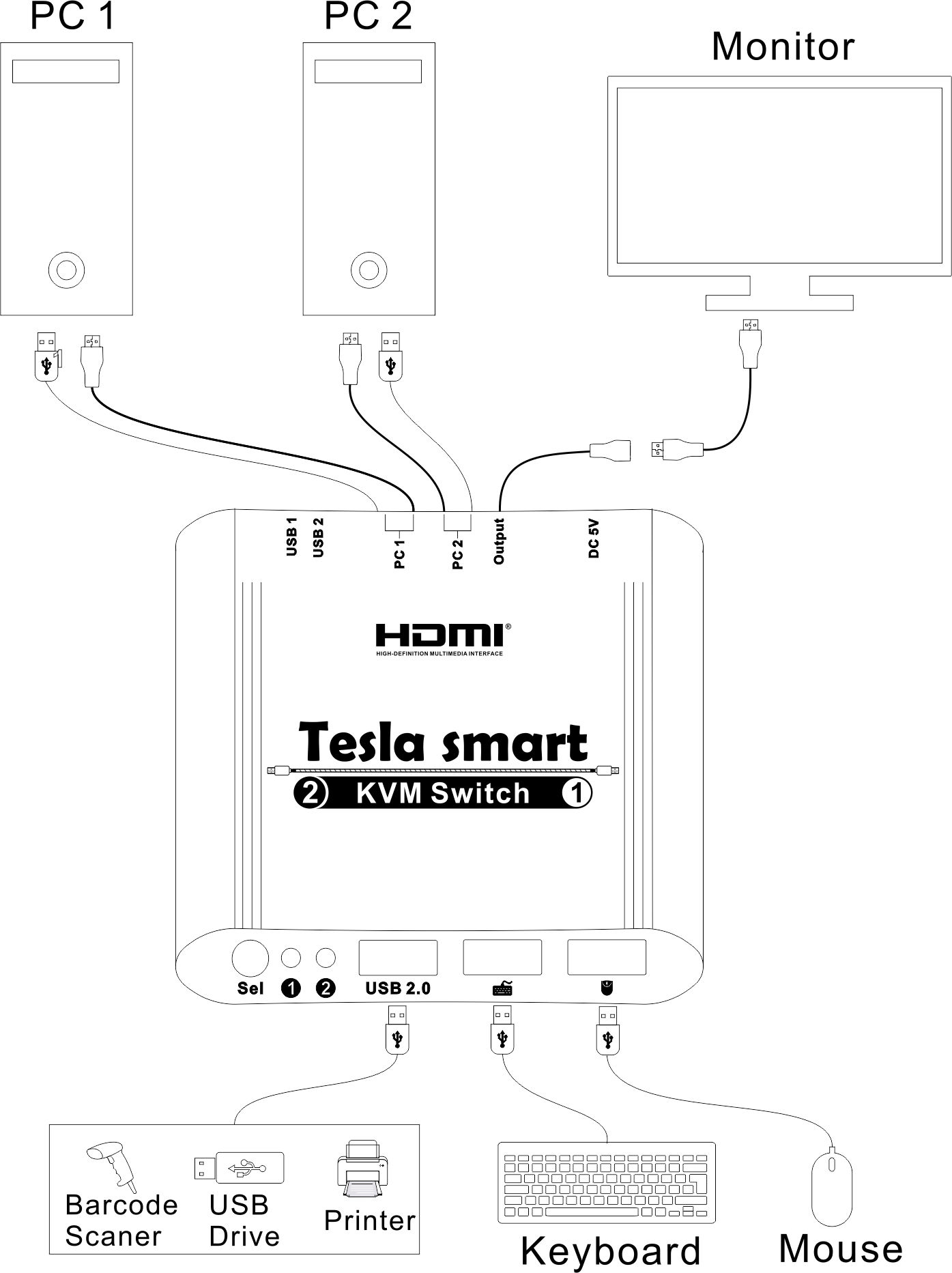

 Connection Diagram





 Specification



HKS0201C10

2x1 HDMI Cable KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

No

Mouse gesture

No

Console commands

No

Technical:

Max. Resolution

3840x2160@30Hz

Data rate

10.2 Gbps

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1* USB Type A

Video /Audio

1 * HDMI Type A

Cable version

2*HDMI (24/26 AWG), 2*USB Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Cable length

1M

Product

Dimension

91 (L) x 75 (W) x 13 (H) mm

Weight

273g

Item

Dimension

275 (L) x 170 (W) x 38 (H) mm

Weight

371g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

30pcs

Total Weight

11.98kg

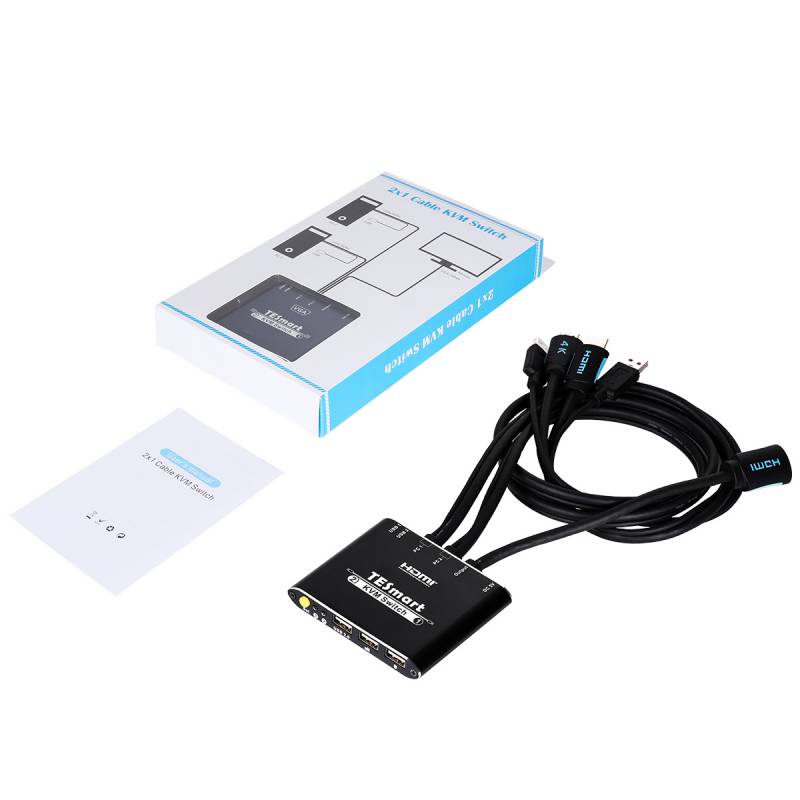

   Packing List


1 * 2x1 HDMI Cable KVM Switch

1 * User manual
