2 Ports HDMI KVM Switch

#HKS0201A20

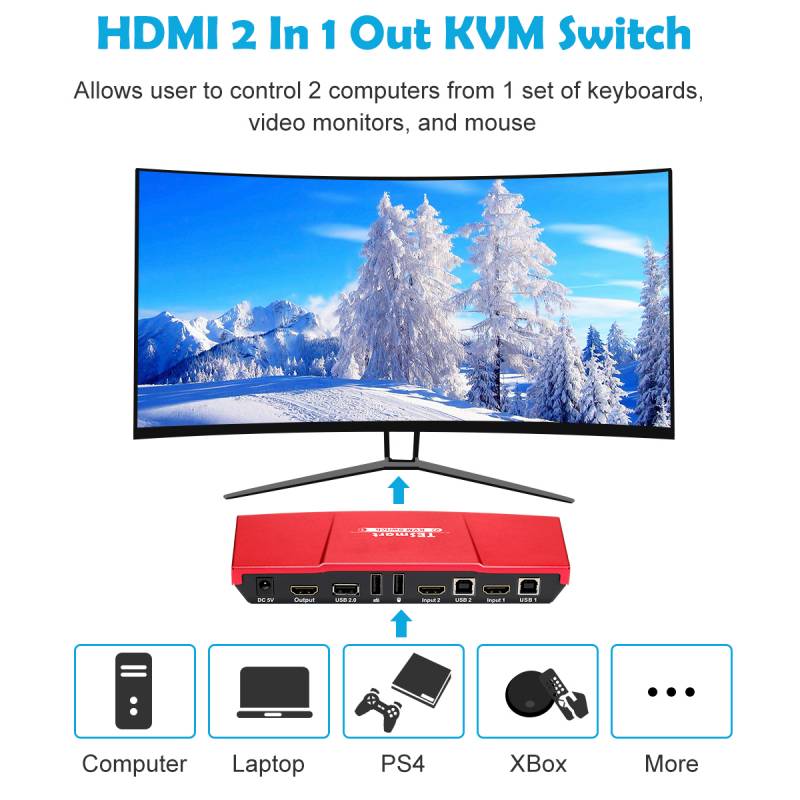

This 2x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 2x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, IR signals and hot keys on keyboard.

List price： 0.00

Price： 0.00

#HKS0201A20

This 2x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 2x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, IR signals and hot keys on keyboard.

Download the specification

Features

●	Using only 1 set of keyboard, mouse and monitor to control 2 host devices
●	Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system
●	Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
●	Support auto switching to monitor computers in a specified time interval
●	Support hot key commands and mouse gesture to switch inputs
●	Support front panel buttons, IR signals, keyboard hot keys to control KVM switch
●	Available to use keyboard without any delay after switch host devices
●	Support resolution up to 3840*2160@30Hz
●	With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer
●	Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
●	With EDID emulators in each input port, keep PCs always having correct display information

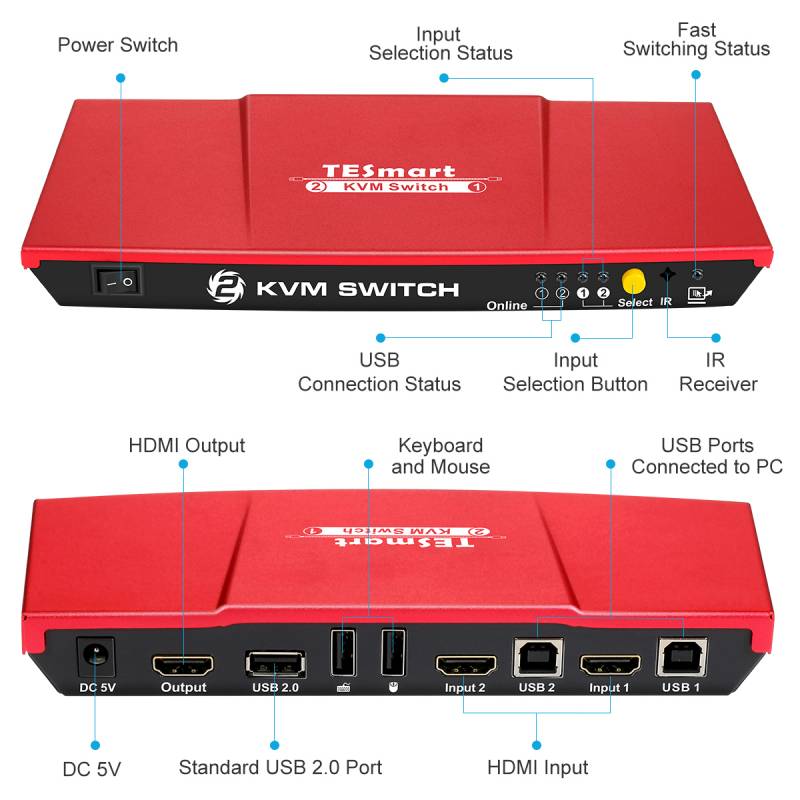

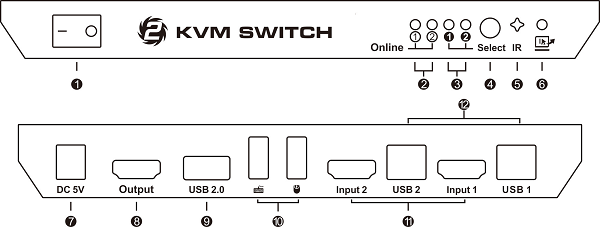

Panel Description

1. Power switch	7. DC 5V
2. USB connection status	8. HDMI output
3. Input selection status	9. Standard USB 2.0 port
4. Input selection button	10. Keyboard and mouse input
5. IR receiver	11. HDMI input
6. Fast switching status	12. USB ports connected to PC

Connection Diagram

Specification

HKS0201A20	2x1 HDMI KVM Switch
Functionality:
Auto Scan	Yes
Port selection	Front panel buttons	Yes
	Keyboard hotkeys	Yes
	IR remote control	Yes
	Mouse gesture	Yes
	Console commands	No
Technical:
Resolution	Up to 3840x2160@30Hz
Auto to get EDID	Yes
Data rate	10.2 Gbps
Auto scan interval	5~254 Seconds
Beep Sound	On/Off
OSD	No
Supported OS	Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
Console ports	Keyboard emulation	1 * USB Type A
	Mouse emulation	1 * USB Type A
	USB 2.0 Hub ports	1 * USB Type A
	Video /Audio	1 * HDMI Type A
	RS232	NA
	LAN	NA
System ports	USB Data	2 * USB Type B
System ports	Video / Audio	2 * HDMI Type A
ESD protection	Human body model - ±8kV (Air-gap discharge)
Mechanical:
Chasing material	Aluminum Alloy
Product	Dimension	198 (L) x 82 (W) x 24 (H) mm
Product	Weight	253g
Item	Dimension	245 (L) x 135 (W) x 90 (H) mm
Item	Weight	803g
Carton	Dimension	515 (L) x 285 (W) x 470 (H) mm
	Quantity	20pcs
	Total Weight	16.91kg
