2x1 USB Switch

#USW0201C1U

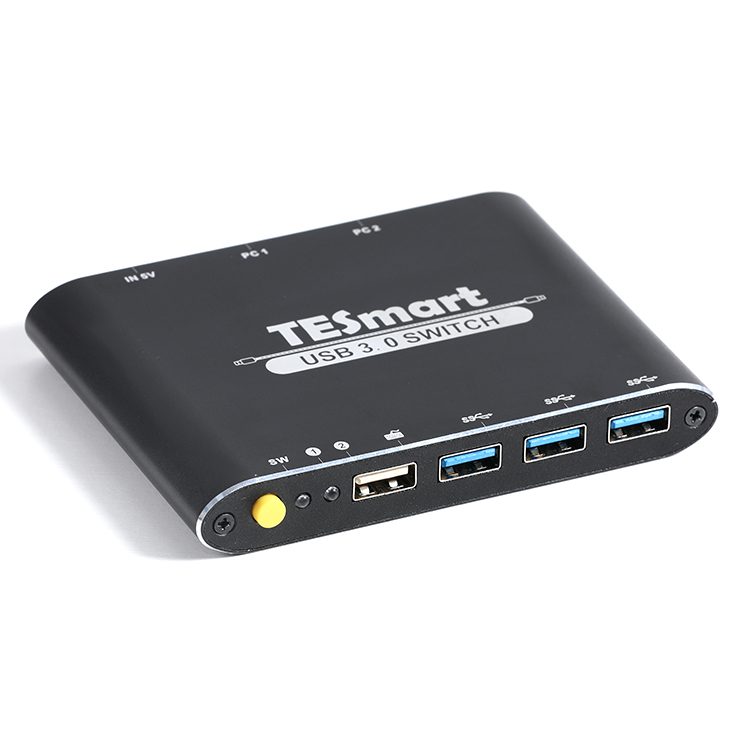

USB Switch allows up to 3 USB 3.0 devices to be connected and switched simultaneously between 2 PCs. Compatible with different operating systems like Windows, Mac OS, Linux and so on. Support different flash-disk formats, greatly simplifying your usage. You can use the front panel button and keyboard hot key to control the Switch to switch between the 2 PCs.

List price： 0.00

Price： 0.00

#USW0201C1U

USB Switch allows up to 3 USB 3.0 devices to be connected and switched simultaneously between 2 PCs. Compatible with different operating systems like Windows, Mac OS, Linux and so on. Support different flash-disk formats, greatly simplifying your usage. You can use the front panel button and keyboard hot key to control the Switch to switch between the 2 PCs.

Download the specification

Features

● Support connecting 3 USB 3.0 devices to switch between 2 PCS

● Support front panel buttons, keyboard hot keys to switch input ports

● Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X /Raspbian/ Ubuntu for Raspberry Pi based systems

● Support hot-plug and the devices connected to the USB 3.0 Switch can be added or removed at any time without turning off the computers

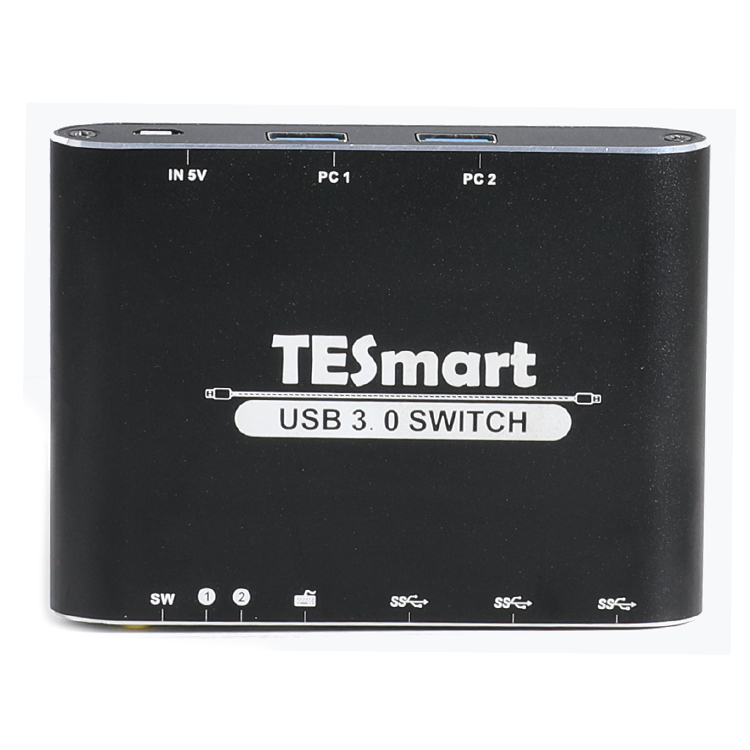

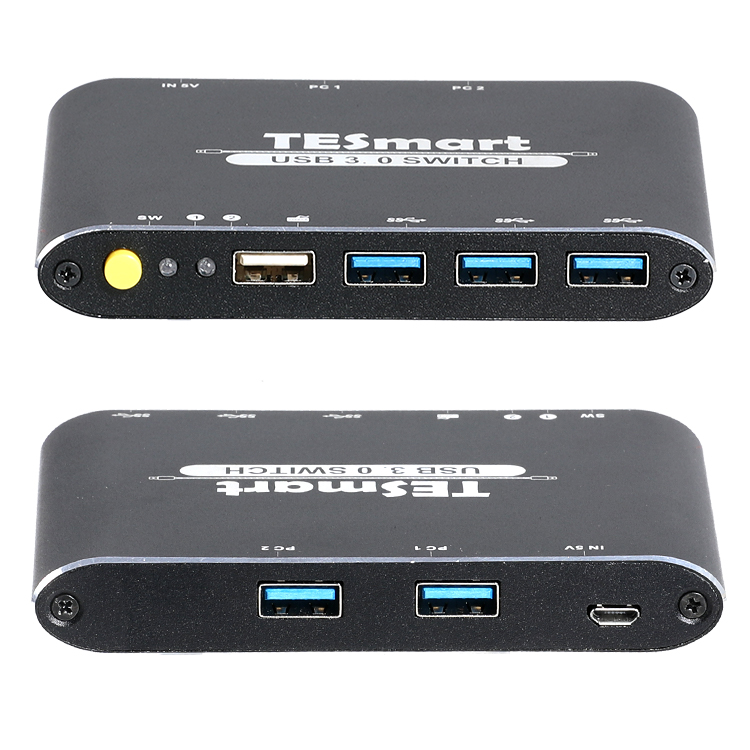

Panel Description

ID	Name	Description
1	IN 5V	5V DC power supply
2	USB 3.0 PC input ports	Connect to 2 PCs use USB 3.0 cables
3	PC selection button	Selected between PC 1 and PC2
4	Input connection status	Indicate current selected PC
5	Keyboard port	Connect keyboard use hot keys to select PC
6	USB 3.0 devices ports	Connect to USB 3.0 devices

Connection Diagram

Specification

USW0201C1U	USB 3.0 Switch
Technical
Supported OS	Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
ESD protection	Human body model - ±8KV (Air-gap discharge)
Ports（to PC）	2 * USB 3.0 cable
Ports	3 * USB 3.0 devices
Mechanical
Power supply	DC 5V Power supply
Operating/storage temperature	0 to 70 degree/-40 to 85 degree
Operating humidity	10 to 90% RH
Product	Dimension	110(L) x 83 (W) x 16 (H) mm
	Weight	157g

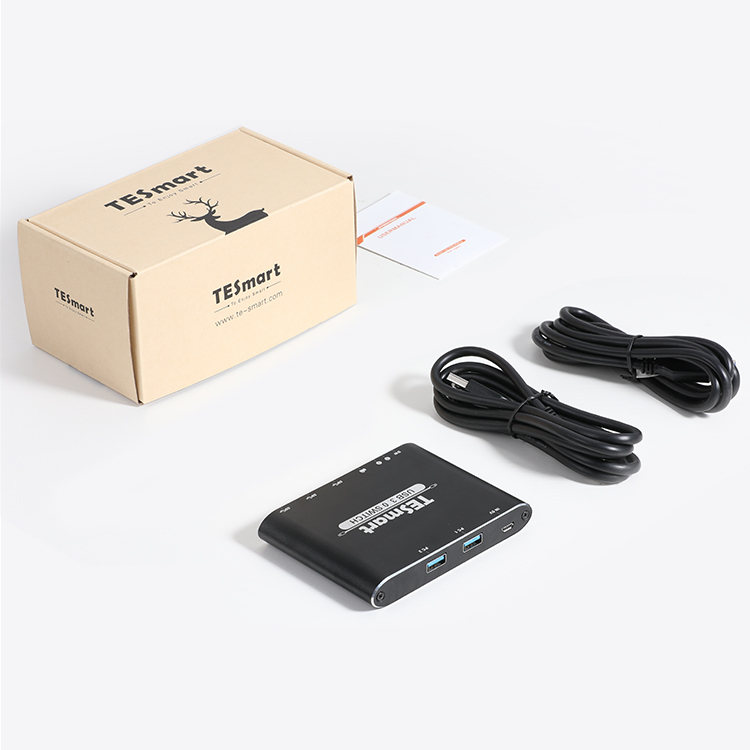

Item	Dimension	157 (L) x 90 (W) x 76 (H) mm
	Weight	390g
Carton	Dimension	490 (L) x 360 (W) x 360 (H) mm
	Quantity	45pcs
	Total Weight	18.4kg
