2x1 VGA cable KVM Switch

2x1 VGA cable KVM Switch

#VKS0201C10

This 2x1 VGA Cable KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between two computers using one compliant display.

This 2x1 VGA Cable KVM Switch, built-in VGA and USB cables for VGA input connection, it available to connect VGA sources directly. Support USB 2.0 hub and USB 2.0 keyboard/mouse, by using USB hub ports on the KVM, you can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switch can be control by keyboard hot key and front panel source selector buttons.

0.00
0.00


#VKS0201C10

This 2x1 VGA Cable KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between two computers using one compliant display.

This 2x1 VGA Cable KVM Switch, built-in VGA and USB cables for VGA input connection, it available to connect VGA sources directly. Support USB 2.0 hub and USB 2.0 keyboard/mouse, by using USB hub ports on the KVM, you can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switch can be control by keyboard hot key and front panel source selector buttons.


  Features


●Using only 1 set of keyboard, mouse and monitor to control 2 host devices
●Support keyboard hot keys and front panel key to control KVM switch
●Support resolution up to 1080P@60Hz
●Support USB 2.0 for printers, USB drives, barcode scanner etc
●Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
●Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system

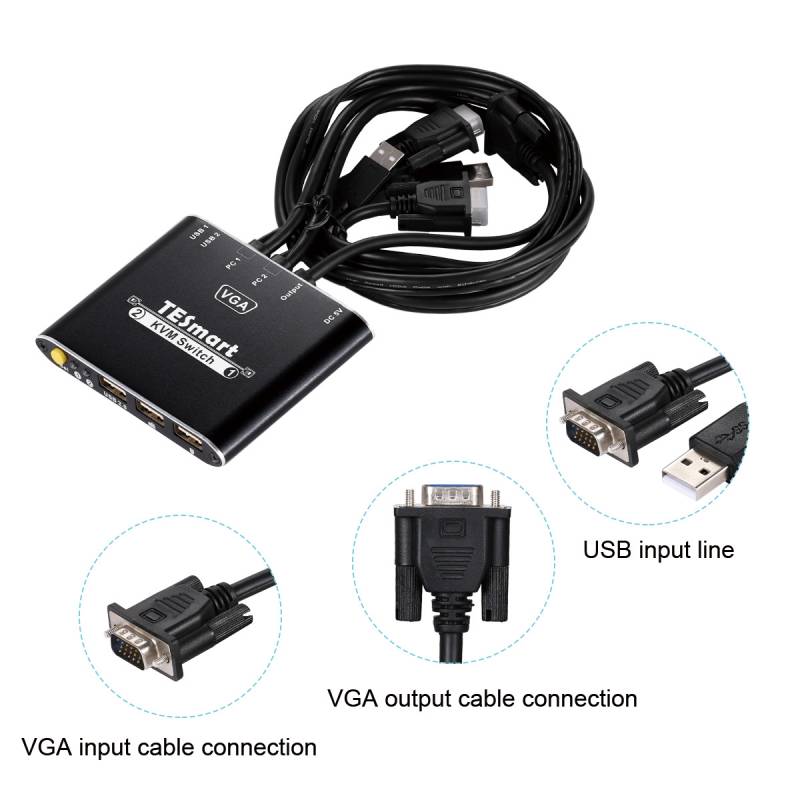

●Built-in VGA and USB cable, it available to connect VGA sources directly
● Power supply from USB cable

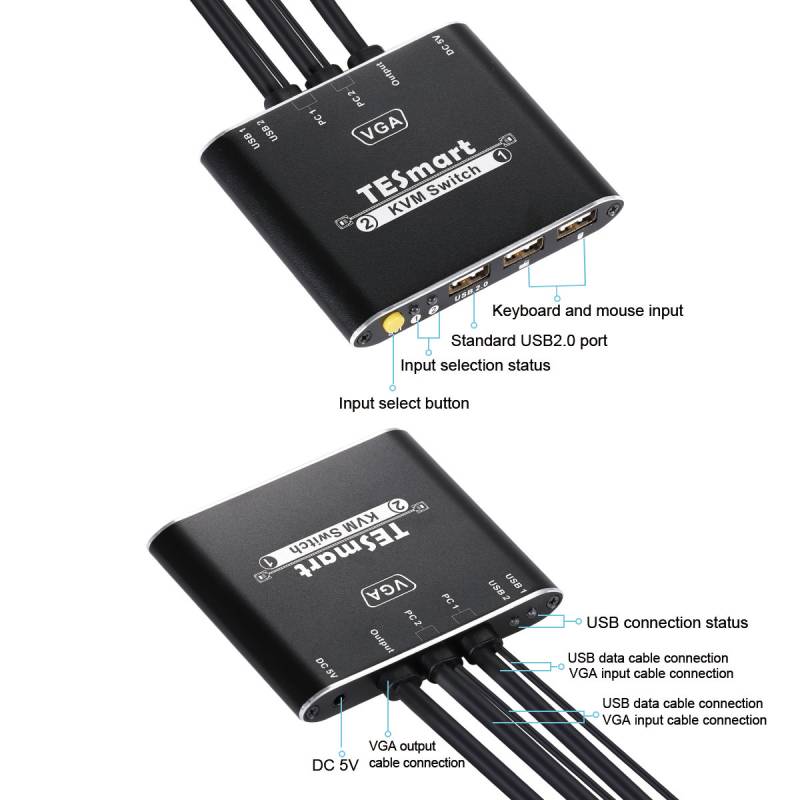

  Panel Description








                                              1.VGA input cable connection                                    6.Input select button
                                           2.USB connection status                                            7.Input selection status
                                           3.USB data cable connection                                     8.Standard USB2.0 port
                                           4.VGA output cable connection                                  9.Keyboard and mouse input
                                           5.DC 5V

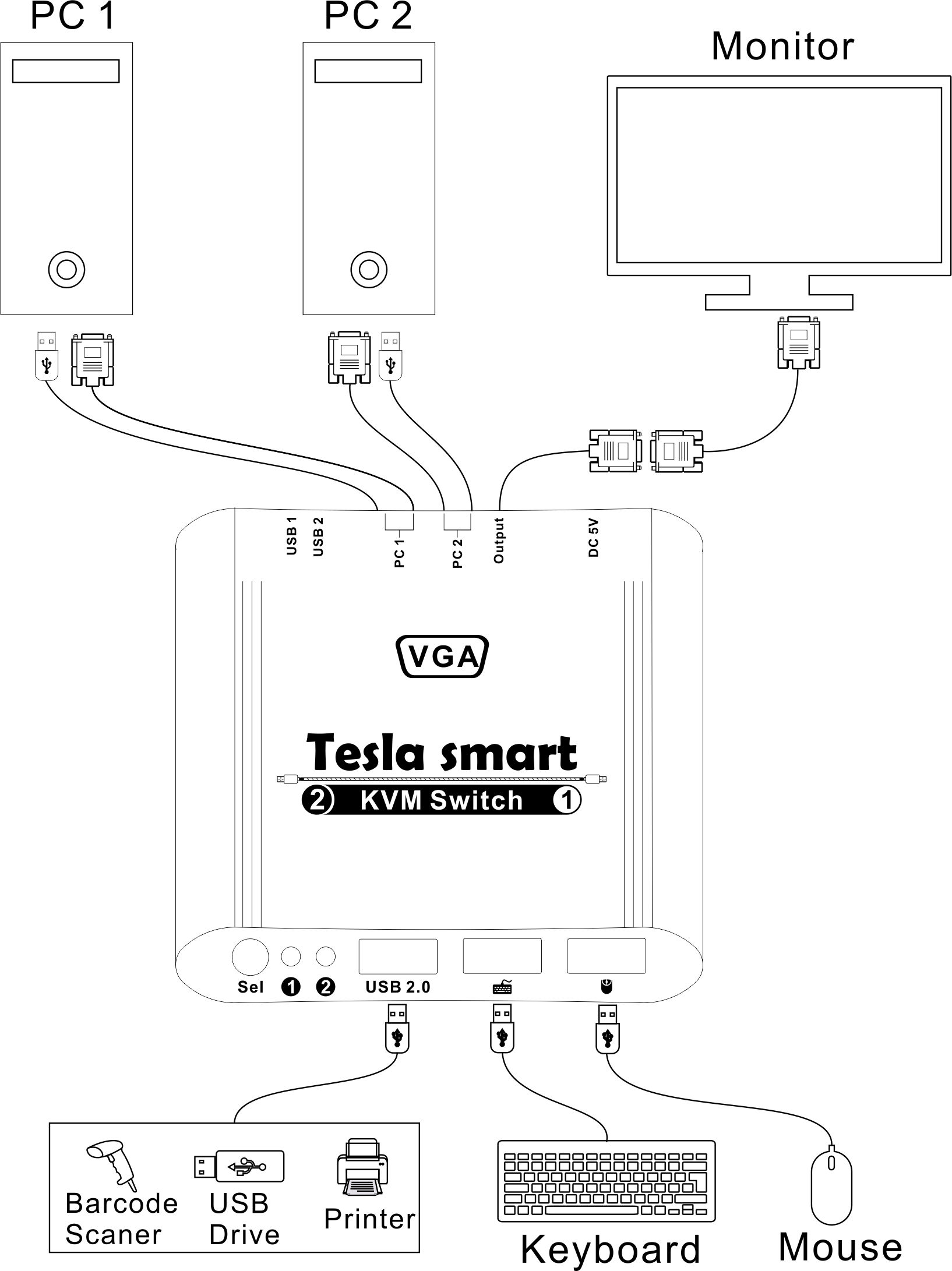

 Connection Diagram









 Specification



VKS0201C10

2x1 VGA Cable KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

No

Mouse gesture

No

Console commands

No

Technical:

Max. Resolution

1920x1080@60Hz

Auto to get EDID

Yes

Data rate

10.2 Gbps

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1* USB Type A

Video /Audio

1 * VGA Type A

Cable version

2*VGA (24 AWG), 2*USB Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Cable length

1M

Product

Dimension

91 (L) x 75 (W) x 13 (H) mm

Weight

303g

Item

Dimension

275 (L) x 170 (W) x 38 (H) mm

Weight

397g

Carton

Dimension

515 (L) x 285 (W) x 470 (H) mm

Quantity

25pcs

Total Weight

10.775kg

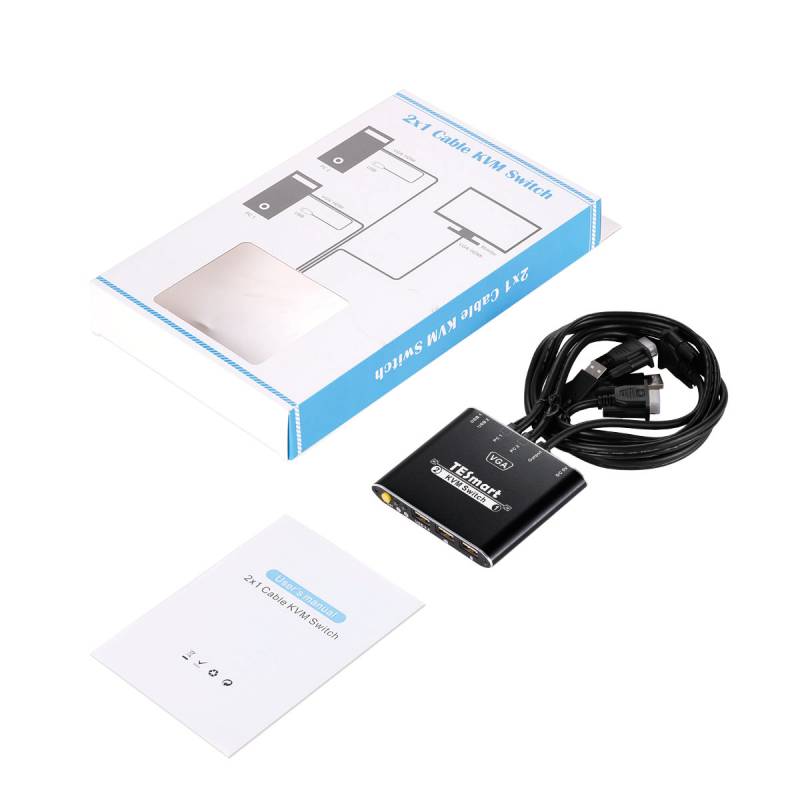

  Packing List


1 * 2x1 VGA Cable KVM Switch

1 * Quick-Start Guide
