2x4 HDMI switch/splitter

#HSP0204A10

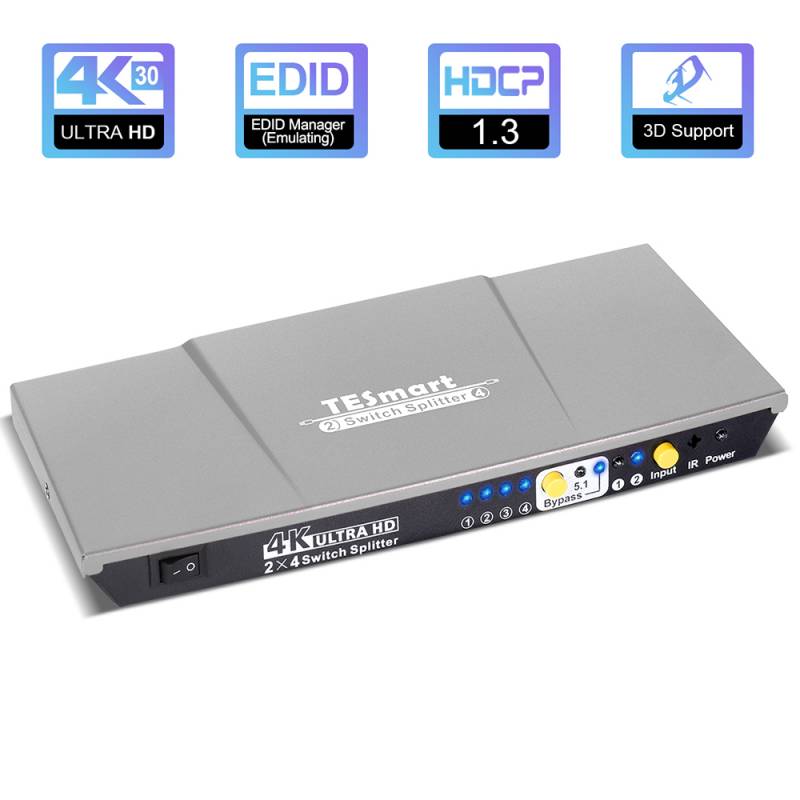

The HDMI splitter(HSP0204A10) for 4K HDMI distributes the one of two Ultra HD HDMI source to four Ultra HD displays simultaneously, without loss of quality or resolution. This product works with any Ultra HD source and supports resolutions up to 4K. It features Fast Switching Technology, and supports HDCP, Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby® TrueHD and DTS-HD® Master Audio™.

List price： 0.00

Price： 0.00

#HSP0204A10

The HDMI splitter(HSP0204A10) for 4K HDMI distributes the one of two Ultra HD HDMI source to four Ultra HD displays simultaneously, without loss of quality or resolution. This product works with any Ultra HD source and supports resolutions up to 4K. It features Fast Switching Technology, and supports HDCP, Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby® TrueHD and DTS-HD® Master Audio™.

Download the specification

Application

The HDMI splitter(HSP0204A10) is applied to TV stores, exhibition hall, bars, KTV clubs, schools, hospitals, hotel lobbies, retail establishments and any other installations where Ultra HD AV content from an HDMI source needs to be displayed simultaneously on up to four Ultra HD displays.

Features

●	Support extracted digital audio output via coaxial

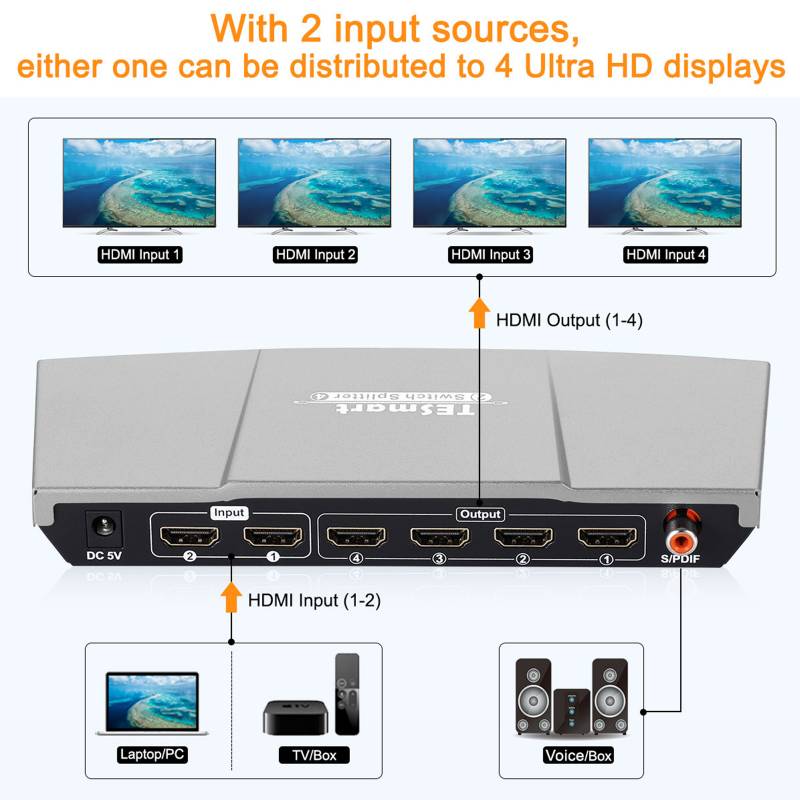

●	With 2 input sources, either one can be distributed to 4 Ultra HD displays
●	HDCP 1.4 compliant
●	Support resolution up to Ultra HD 4K 30Hz
●	Support up to 36 bit/pixel Deep Color
●	Support LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™
●	Support proffered audio setting (5.1CH/ Bypass)

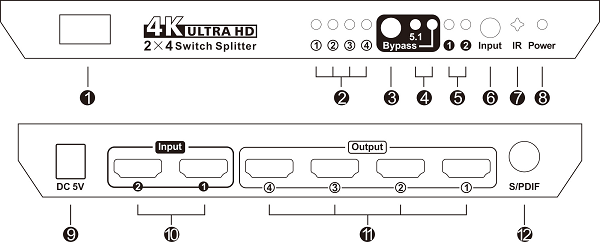

Panel Description

1.Power switch	7.IR receiver
2.HDMI output status	8.Power status
3.Audio format selection button	9.DC 5V
4.Audio format indicator	10. HDMI input
5.HDMI input status	11.HDMI output
6.Input selection button	12.S/PDIF Coxial output

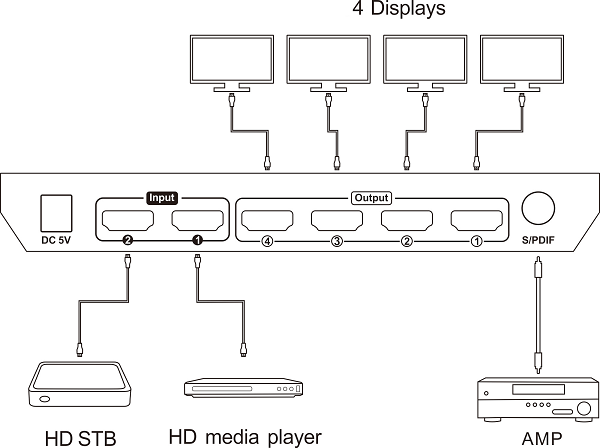

Connection Diagram

Specification

HSP0204A10			2x4 HDMI Switch /Splitter
Functionality:
Port selection		Front panel buttons		Yes

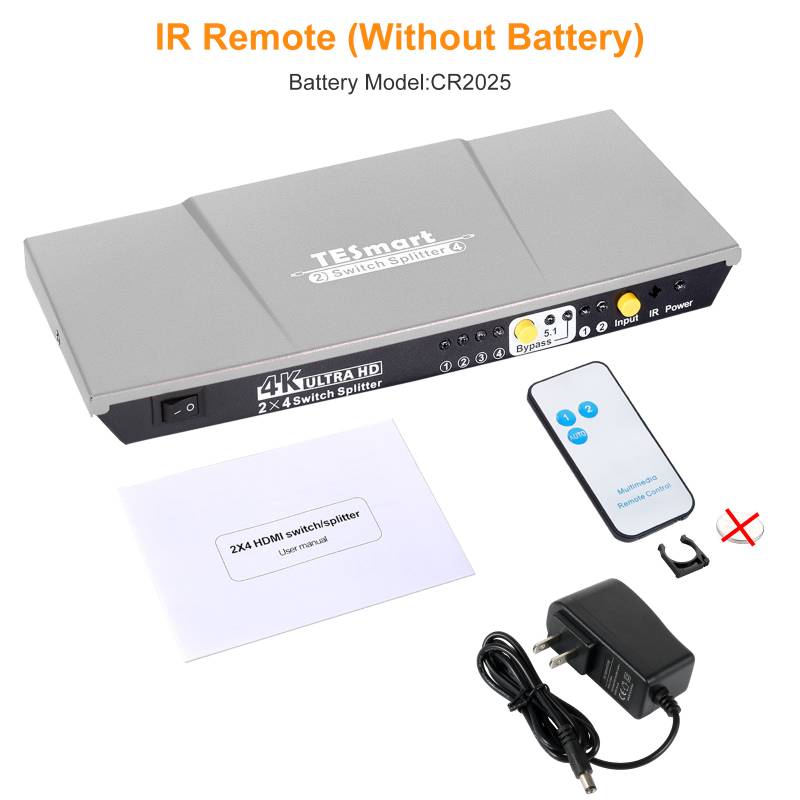

		IR remote control		Yes
Technical:
Resolution	Up to Ultra HD 4K 30Hz
HDCP version	1.4
Data rate	10.2 Gbps
Input	2* HDMI Type A, 24/26 AWG cable up to 5M (1080P60Hz)
Output	4* HDMI Type A, 24/26 AWG cable up to 15M (1080P60Hz)
ESD protection	Human body model - ±8kV (Air-gap discharge)
Mechanical:
Chasing material	Aluminum Alloy
Product	Dimension			198 (L) x 82 (W) x 24 (H) mm
	Weight			249g
Item	Dimension			245 (L) x 135 (W) x 90 (H) mm
	Weight			524g
Carton	Dimension			515 (L) x 285 (W) x 470 (H) mm
	Quantity			20pcs
	Total Weight			11.33kg
