2x8 HDMI Switch Splitter

2x8 HDMI Switch Splitter

# HSP0208A1U

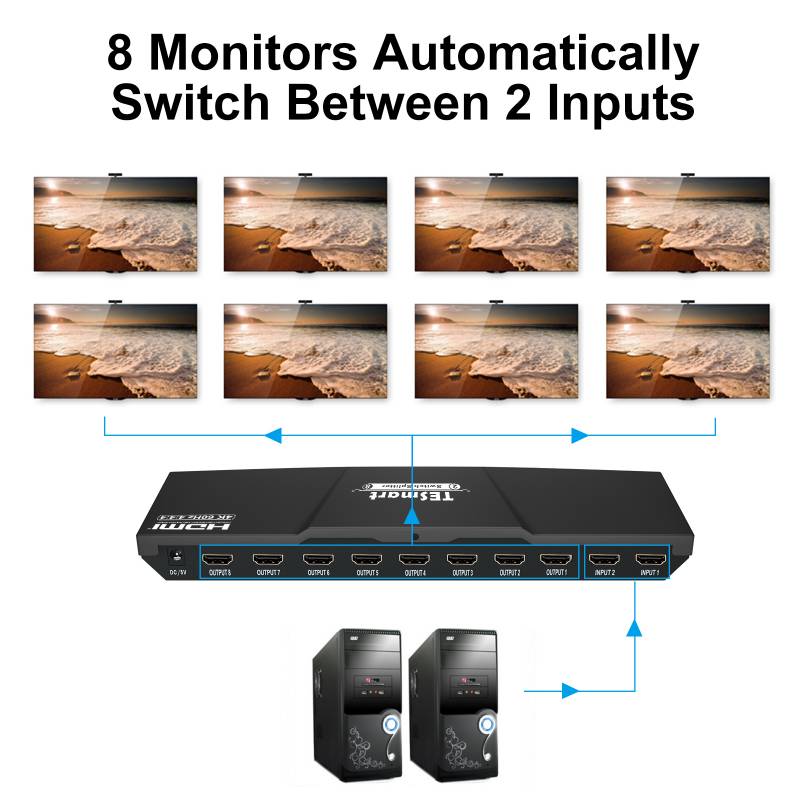

This 2x8 HDMI switch splitter routes can distribute one of two Ultra HD HDMI source to eight Ultra HD displays simultaneously. Support resolution up to 4K@60Hz. Compliant with HDCP 2.2. Support up to 36 bit/pixel deep color. Support manual switching mode and auto switching mode. With smart EDID management, priority to the display with minimum resolution. Support auto scanning and intelligent recognize valid inputs in auto switching mode. Support panel button and IR signals to switch input sources.


0.00
0.00


# HSP0208A1U


This 2x8 HDMI switch splitter routes can distribute one of two Ultra HD HDMI source to eight Ultra HD displays simultaneously. Support resolution up to 4K@60Hz. Compliant with HDCP 2.2. Support up to 36 bit/pixel deep color. Support manual switching mode and auto switching mode. With smart EDID management, priority to the display with minimum resolution. Support auto scanning and intelligent recognize valid inputs in auto switching mode. Support panel button and IR signals to switch input sources.


Download the Specification


Application


The HDMI splitter is applied to TV stores, exhibition hall, bars, KTV clubs, schools, hospitals, hotel lobbies, retail establishments and any other installations where Ultra HD AV content from an HDMI source needs to be displayed simultaneously on up to 8 Ultra HD displays.


Features


l With 2 input sources, either one can be distributed Ultra HD displays

lSupport  HDR

l HDCP 2.2 compliant

l Support up to 36 bit/pixel deep color

l Support resolution up to 3840*2160@60Hz

l Support panel button and IR signals to switch input sources

lSupport manual switching mode and auto switching mode

l Support auto input detection

lWith smart EDID management, priority to the display with minimum resolution

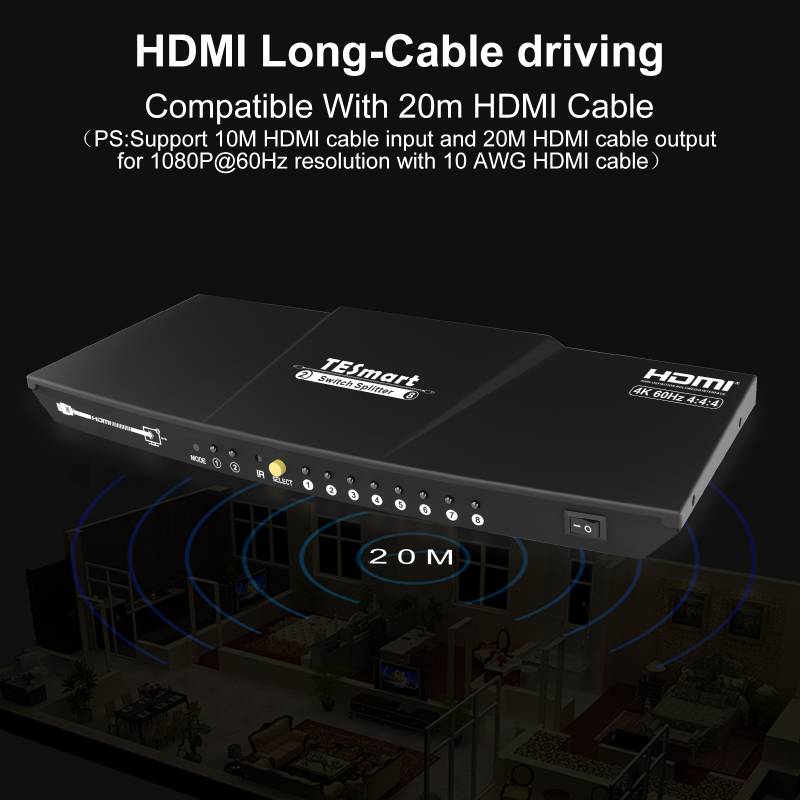

l Support HDMI input/output cable up to 10 meters



Panel Descriptions





ID

Name

Description

1

Mode switch button

Switch between auto switching mode and manual switching mode

2

Input selection status

Indicate current selected input source

3

IR receiver

Receive IR remote signal

4

Input selection button

Select input sources

5

Output selection status

LEDs will be lit if HDMI  displays are connected to switch splitter

6

Power switch

Turn on or off power supply

7

DC 5V

DC 5V power supply

8

HDMI output ports

Connect to HDMI displays

9

HDMI input ports

Connect to HDMI source devices



Connection Diagram




Specification


HSP0208A1U

2x8 HDMI Switch /Splitter

Functionality:

Port selection

Front panel buttons

Yes

IR remote control

Yes

Power switch

Yes

EDID mode adjust

Yes

Smart EDID

Yes

Technical:

Max.Resolution

3840*2160@60Hz

HDCP version

2.2

Data rate

18Gbps

Input

2*HDMI Type A, 24/26 AWG cable up to 5M (1080P60Hz)

Output

8*HDMI Type A, 24/26 AWG cable up to 15M (1080P60Hz)

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product

Dimension

300 (L) x 120 (W) x 30 (H) mm

Weight

514g

Item

Dimension

338 (L) x 166 (W) x 90 (H) mm

Weight

932g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

10.17kg


Packing list

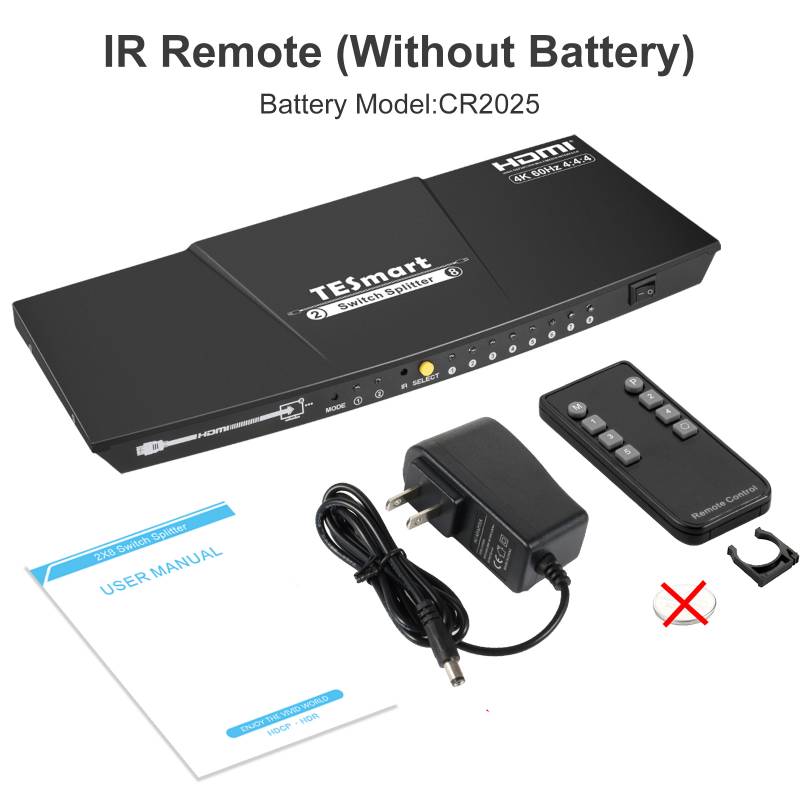

1 * 2X8 HDMI Switch Splitter

1 * IR remote control

1 * DC 5V power adapter

1 * User Manual
