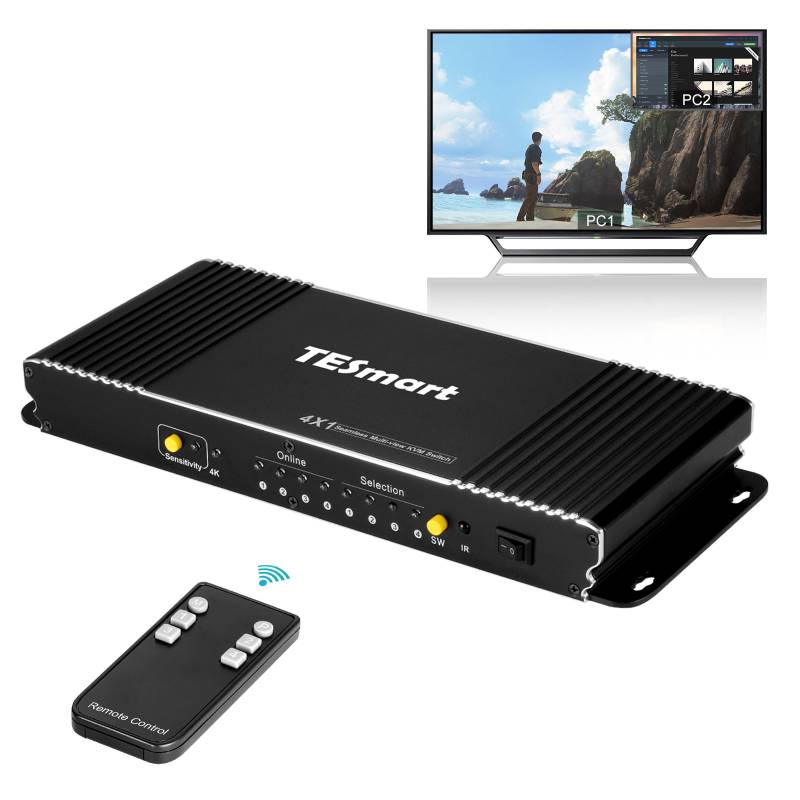

4 Ports Seamless HDMI KVM Switch w/PIP

4 Ports Seamless HDMI KVM Switch w/PIP

#HKS0401B50

This 4 Ports Seamless HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with four PCs.
The 4 Ports Seamless HDMI KVM Switch supports PIP mode, you can display one source or any two different sources on one display in the form of PIP . It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no picture loss. Support USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, the front panel buttons, IR signal, keyboard hot keys and mouse gesture.

0.00
0.00


#HKS0401B50

This 4 Ports Seamless HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with four PCs.
The 4 Ports Seamless HDMI KVM Switch supports PIP mode, you can display one source or any two different sources on one display in the form of PIP . It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no picture loss. Support USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, the front panel buttons, IR signal, keyboard hot keys and mouse gesture.

Download the specification

Features


l  Using only 1 set of keyboard, mouse and monitor to control 4 PCs

l  No latency, support seamless switching

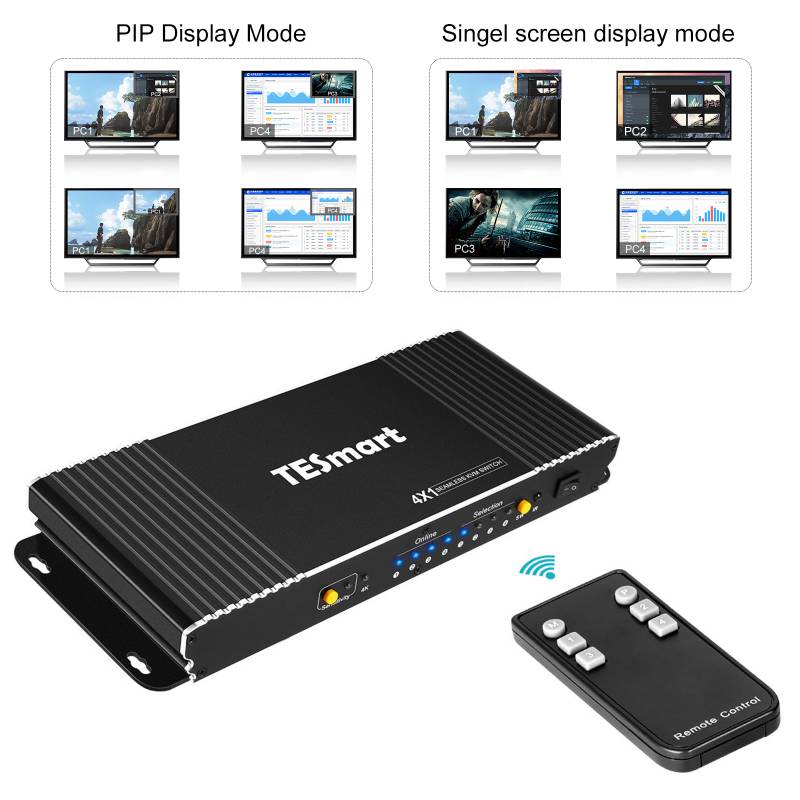

l  Support PIP (Picture in Picture) mode, one small window will be laid over another window

l  Support resolution up to 3840*2160@30Hz

l  Support auto switching to monitor computers in a specified time interval

l  Available to use keyboard without any delay after switching inputs

l  Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices

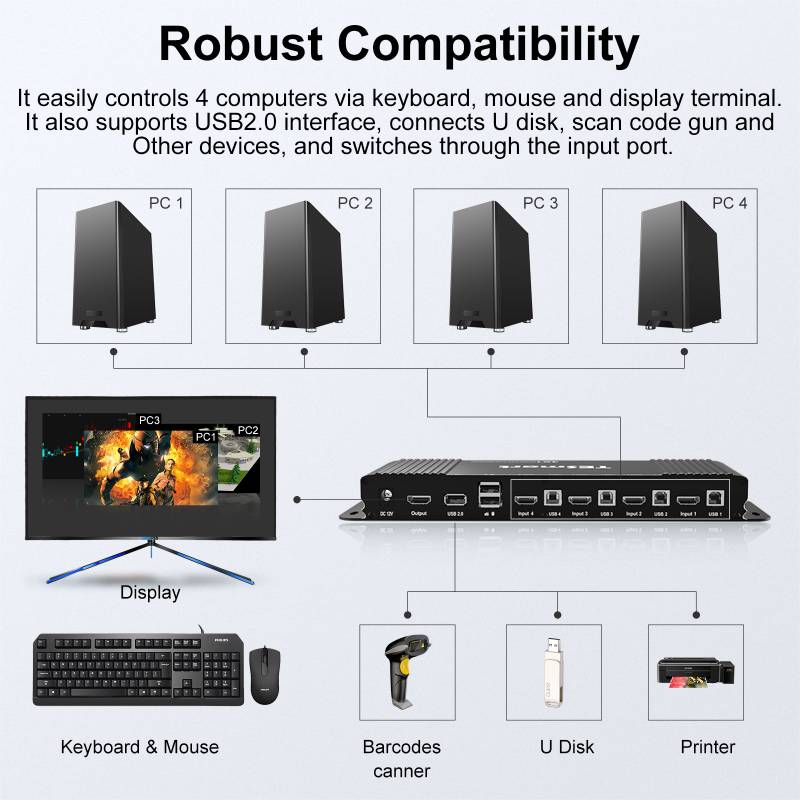

l  With extra standard USB 2.0 hub port, it is possible to connect barcode scanner, USB hard drive or other USB devices to KVM

l  With EDID emulators in each input port, keep PCs always having correct display information

l Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

l  Switching between four PCs using front panel buttons, keyboard hot keys, mouse gesture or IR remote control

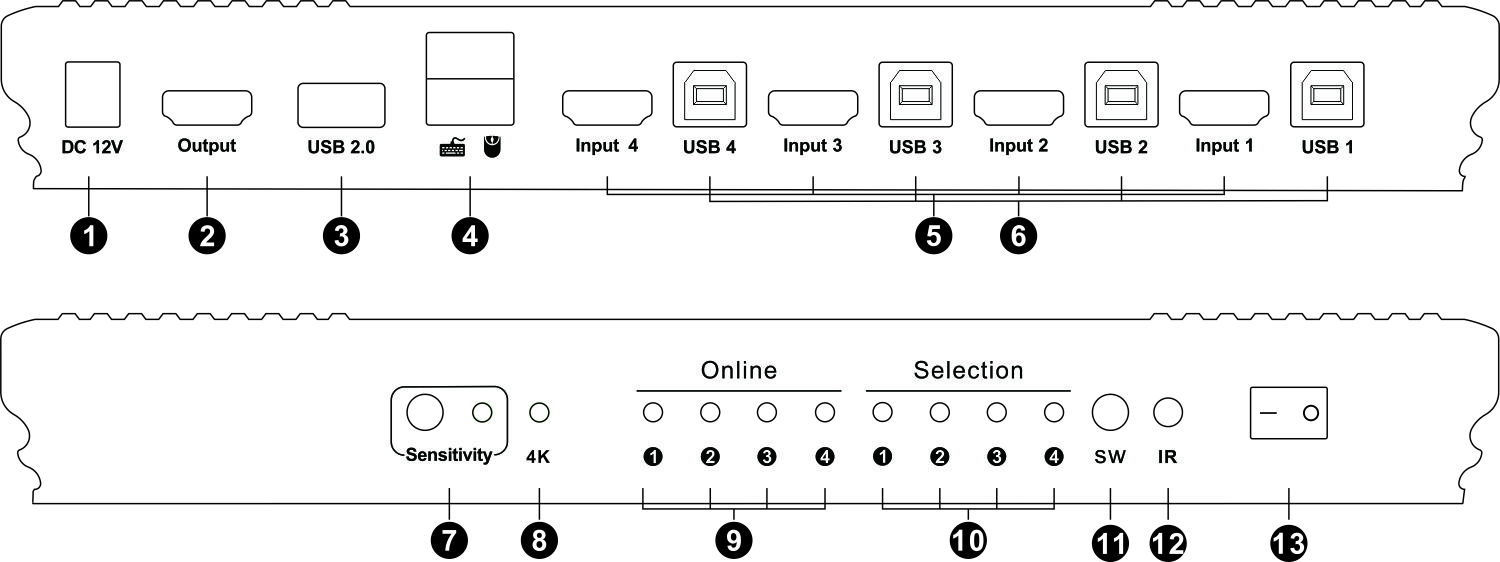

Panel Descriptions




ID

Name

Description

1

DC 12V

DC 12V power supply

2

HDMI output

Connect to HDMI display

3

Standard USB 2.0 port

Connect to USB 2.0 devices, printers, USB drives，etc

4

Keyboard and mouse input

Connect to keyboard and mouse

5

HDMI input

Connect to HDMI source devices

6

USB data ports

Connect to computer USB ports

7

Mouse sensitivity adjust button and indicator

Press button to change the sensitivity of the mouse movement recognition

8

Output resolution selection status

LED on: 4K resolution
LED off: 1080P resolution

9

USB connection status

The corresponding LED will be lit if the USB data port is well connected to the computer and the computer is on

10

Input selection status

Indicate current active selected input source

11

Input selection button

Select input source

12

IR receiver

Receive IR remote signal

13

Power switch

Turn on or turn off power supply

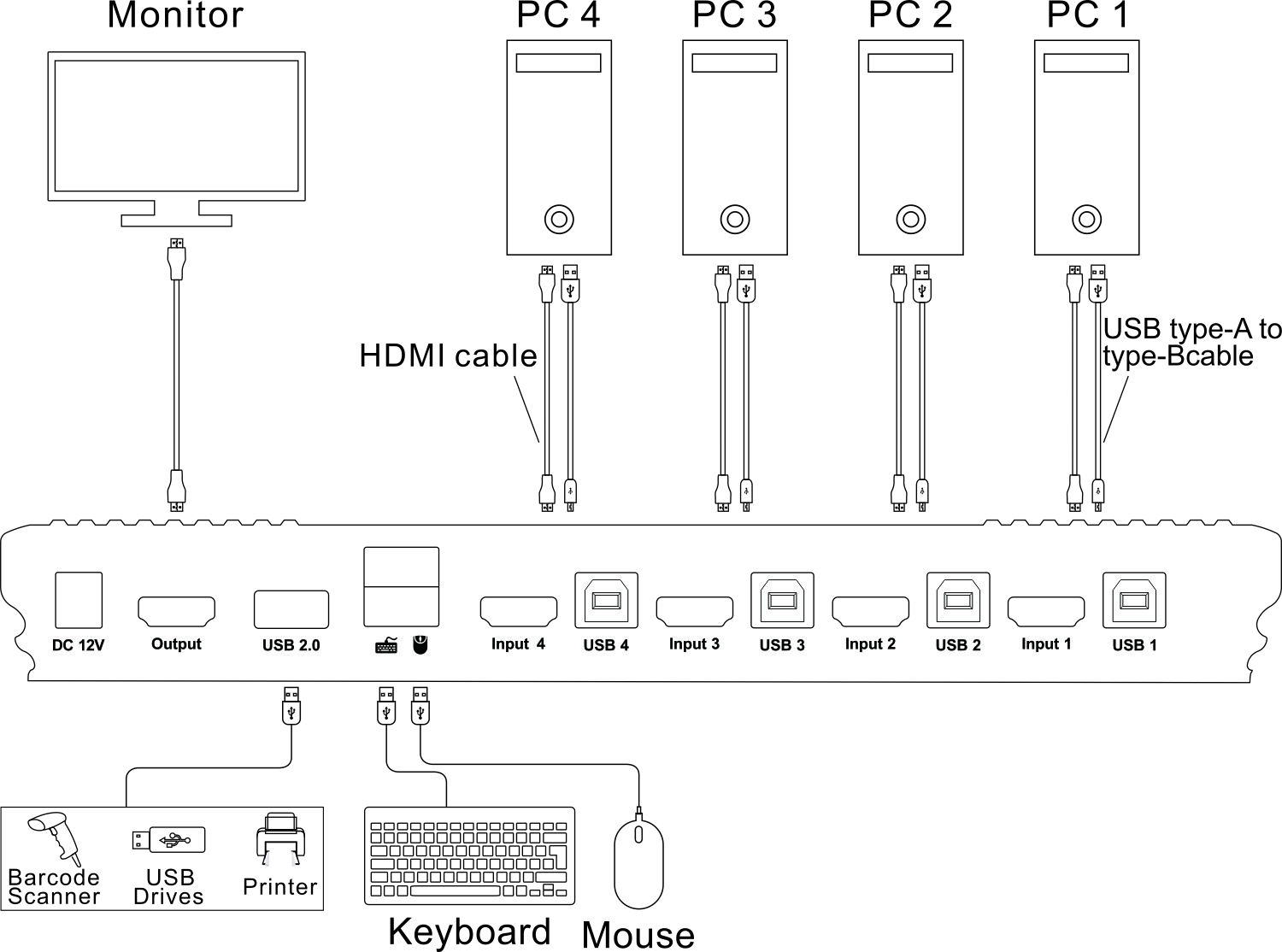

Connection Diagram





Specification


HKS0401B50

4 Ports Seamless HDMI KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Mouse gesture

Yes

Console commands

No

Technical:

Max. Resolution

3840x2160@30Hz

Auto to get EDID

Yes

Data rate

10.2 Gbps

Auto scan interval

5~254 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

1 * HDMI Type A

RS232

NA

LAN

NA

System ports

USB Data

4 * USB Type B

Video / Audio

4 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product

Dimension

300 (L) x 117.5 (W) x 30.5 (H) mm

Weight

751g

Item

Dimension

321 (L) x 175 (W) x 81 (H) mm

Weight

1350g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

14.35kg



Packing list


1 * 4 Ports Seamless HDMI KVM Switch

1 * DC 12V Power Adapter

1 * IR Remote Control

1 * Quick-Start Guide
