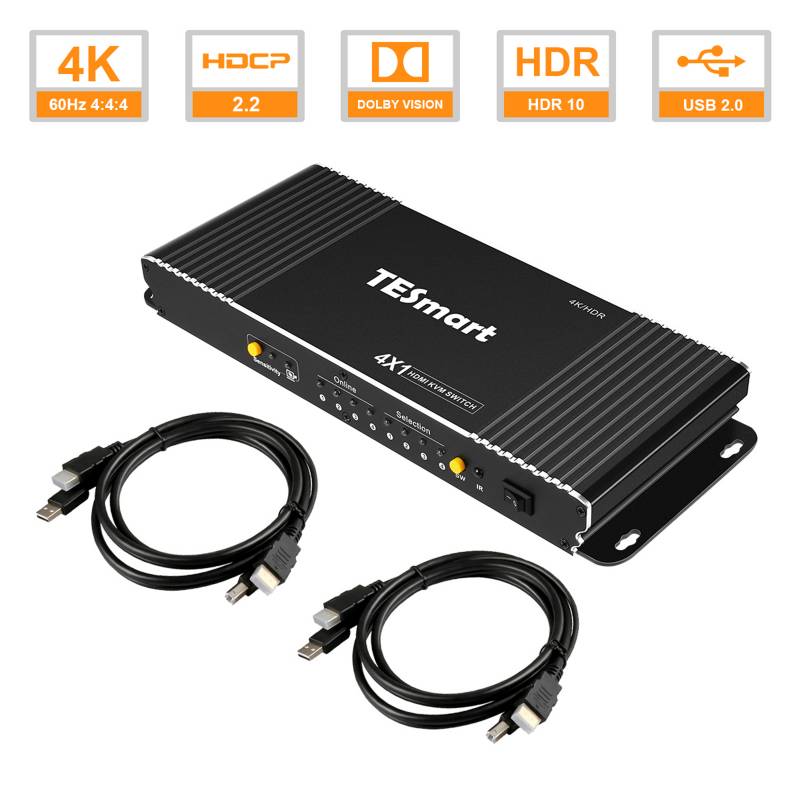

4X1 HDMI KVM Switch 4K@60Hz

4X1 HDMI KVM Switch 4K@60Hz

#HKS0401B1U

This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 4x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, IR signals and hot keys on keyboard. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports. Support analog L/R audio output.

0.00
0.00


#HKS0401B1U

This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.

The 4x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, IR signals and hot keys on keyboard. With EDID emulators in each input port, keep PCs always having correct display information, prevent display settings from changing while switching input ports. Support analog L/R audio output.

Download the specification
Features


l  Using only 1 set of keyboard, mouse and monitor to control 4 PCs

l  Available to use keyboard and mouse without any delay after switching input sources

l  Support resolution up to 3840*2160@60Hz 4:4:4

l  Compliant with HDCP 2.2

l  Support USB2.0 for printers, USB drives,etc

l  With EDID emulators in each input port, keep PCs always having correct display information

l  Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs

l  Support Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based system

l  Support auto switching among all devices so as to monitor the devices in a specified time interval

l  Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices

l  Support analog L/R audio output

l  Support HDR 10 and Dolby Vision

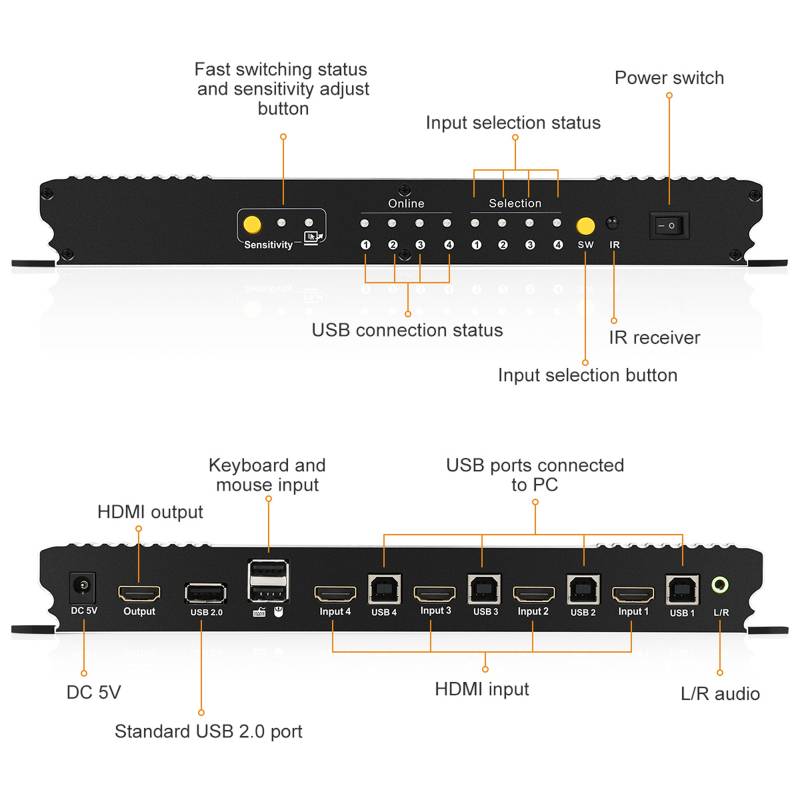

Panel Description



ID

Name

Description

1

Mouse gesture switching status and sensitivity adjust button

The LED will be lit if the mouse gesture mode is activated.

Press the button to change the sensitivity of mouse movement recognition

2

USB connection status

The corresponding LED will be lit if the USB data port is well connected to the computer and the computer is on

3

Input selection status

Indicate current active selected input source

4

Input selection button

Select input source

5

IR receiver

Receive IR remote signal

6

Power switch

Turn on or off power supply

7

DC 5V input

DC 5V power supply

8

HDMI output

Connect to HDMI display

9

Standard USB2.0 port

Connect to USB 2.0 devices, printers, USB drives

10

Keyboard and mouse input

Connect to keyboard and mouse

11

HDMI input

Connect to HDMI source devices

12

USB data ports

Connect to USB ports of computers

13

L/R audio output

Analog L/R audio output



Connection Diagram




Specfication


HKS0401B1U

4x1 HDMI KVM Switch 4K@60Hz 4:4:4

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Technical:

Max. Resolution

3840x2160@60Hz 4:4:4

Auto to get EDID

Yes

Data rate

18 Gbps

Auto scan interval

5~254 Seconds

Beep Sound

On/Off

OSD

No

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

1 * HDMI Type A

System ports

USB Data

4 * USB Type B

L/R Audio output

1 * AUX

Video / Audio

4 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Aluminum Alloy

Product

Dimension

262.5(L) x 112 (W) x 33.7 (H) mm

Weight

770g

Item

Dimension

338 (L) x 166 (W) x 90 (H) mm

Weight

1453g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

10pcs

Total Weight

15.38kg

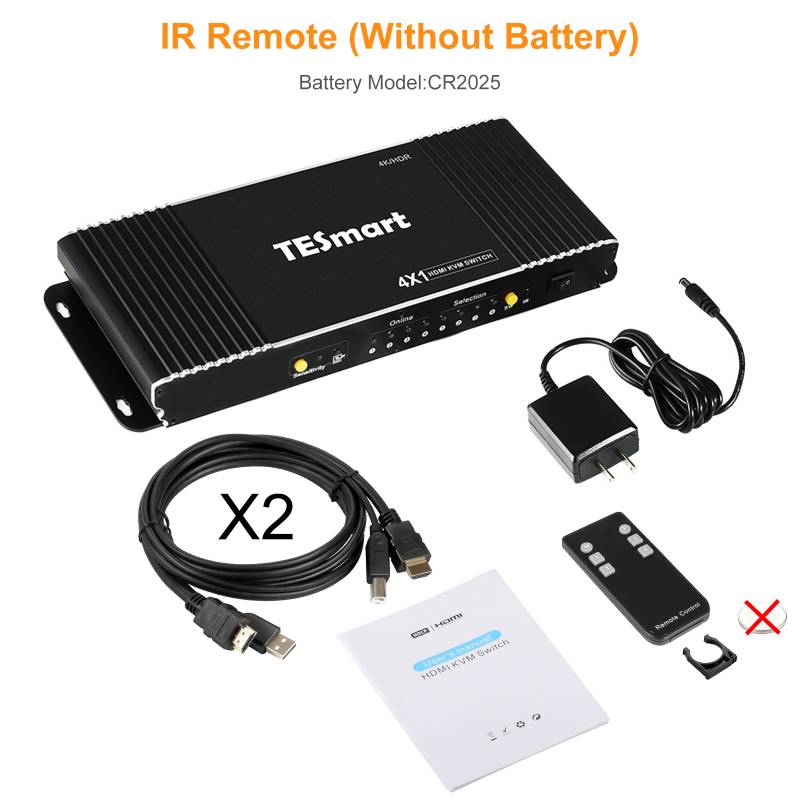

Packing List

1*4X1 HDMI KVM Switch
1*DC 5V Power adapter
1*IR Remote control
1*User manual
