DP Switch allows 2 Ultra HD or Full HD DisplayPort sources to be routed to 1 Ultra HD DisplayPort display. The resolution can reach up to 7680x4320@30Hz. Each Ultra HD source can be switched to the display using the front panel push-button.



0.00
0.00


#PSW0201A1U

DP Switch allows 2 Ultra HD or Full HD DisplayPort sources to be routed to 1 Ultra HD DisplayPort display. The resolution can reach up to 7680x4320@30Hz. Each Ultra HD source can be switched to the display using the front panel push-button.




  Features


l  With 2 DisplayPort inputs and 1 DisplayPort output

l  Support resolution up to 7680x4320@30Hz

l  Support 36 bit color depth

l  Support Dolby TrueHDDTS-HD Master Audio,Dolby Digital and AC 3audio transmission


  Panel Description


ID

Name

Description

1

lnput selection status

The LED will be lit (blue) if the corresponding input  source is selected

2

lnput selection button

Select input port

3

DC 5V

5V power supply

4

DisplayPort output

Connect to DisplayPort display

5

DisplayPort inputs

Connect to DisplayPort souce devices

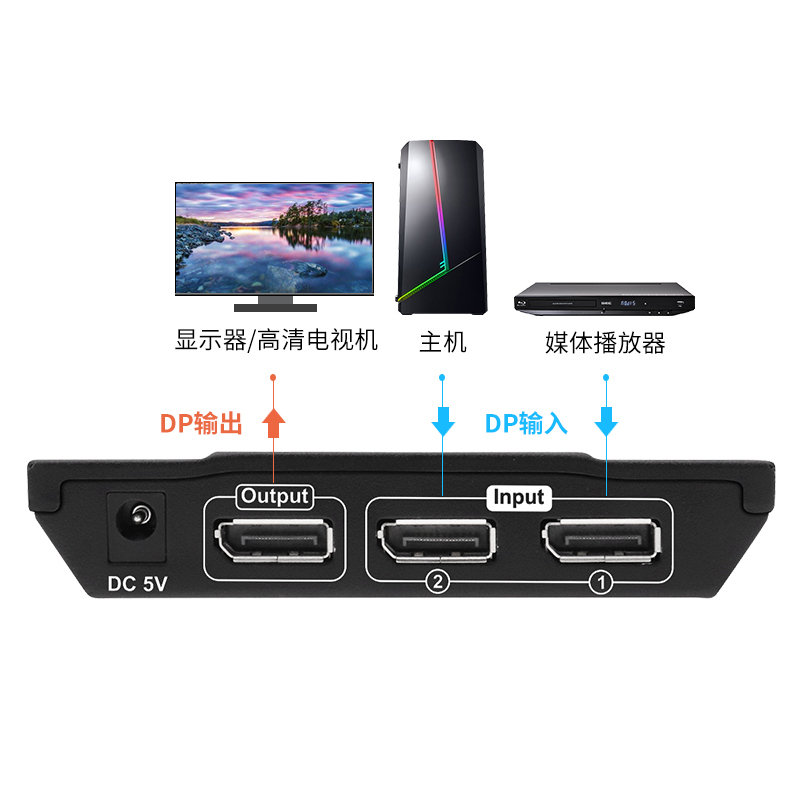

   Connection Diagram



  Specification


PSW0201A1U

2x1 DP Switch 7680x4320@30Hz

Technical

HDCP compliance

1.2

Data rate

18 Gbps

Max. resolution

7680x4320@30Hz

ESD protection

Human body model - ±8KV (Air-gap discharge)

Input

2* DP cable

Output

1* DP cable

Mechanical

Power supply

DC 5V

Operating/storage temperature

0 to 70 degree/-40 to 85 degree

Operating humidity

10 to 90% RH

Product

Dimension

122(L) x 54 (W) x 24 (H) mm

Weight

109g

Item

Dimension

157 (L) x 90 (W) x 76 (H) mm

Weight

281g

Carton

Dimension

490 (L) x 360 (W) x 360 (H) mm

Quantity

45pcs

Total Weight

13.495kg

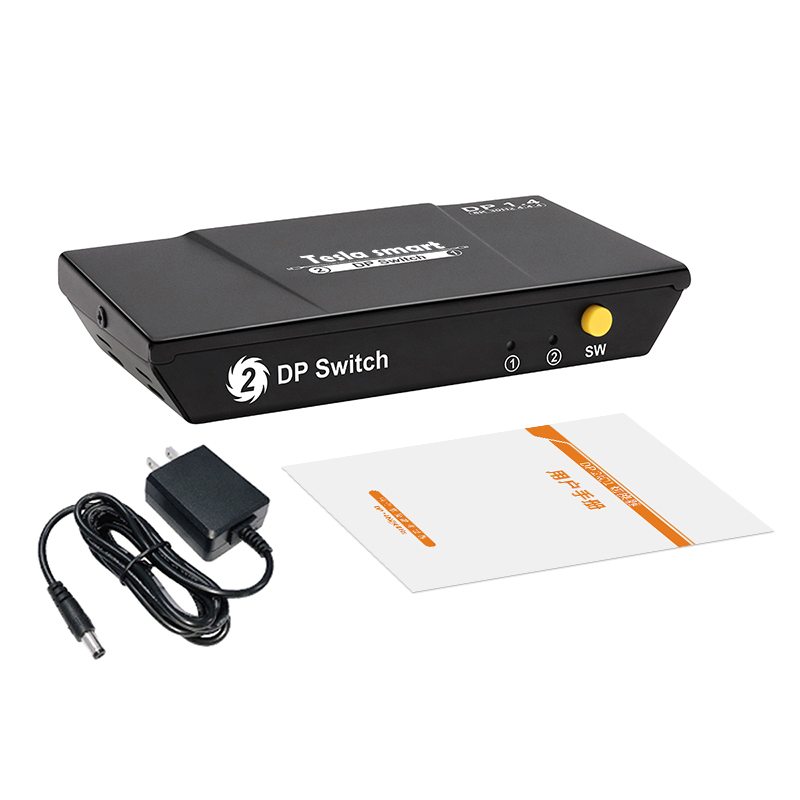

  Packing List


1 * 2x1 Displayport Switch

1 * DC 5V Power adapter

1 * User Manual
