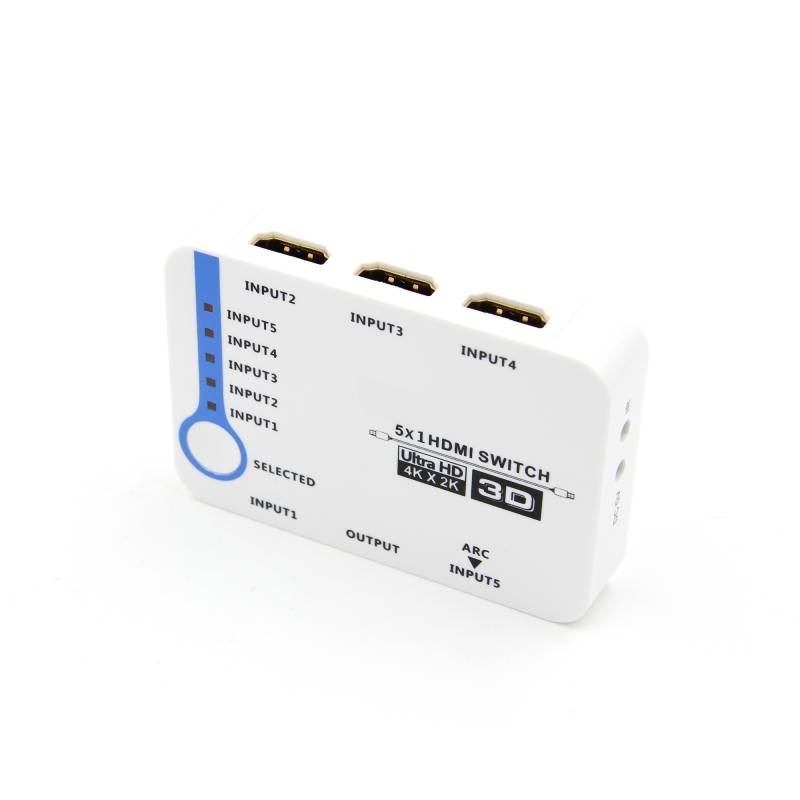

5x1 HDMI Switch with IR

#HSW0501A10

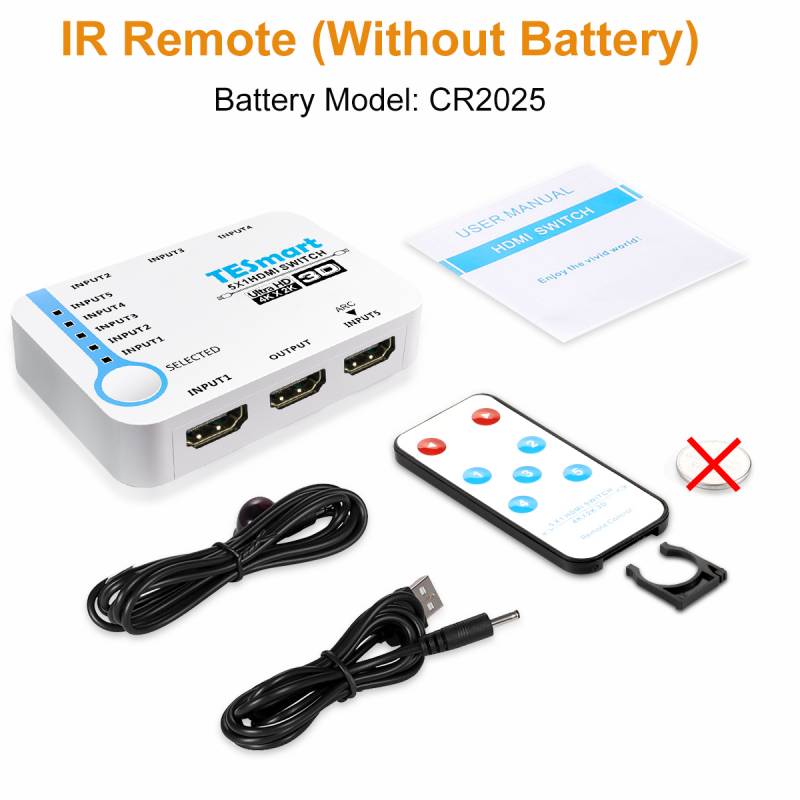

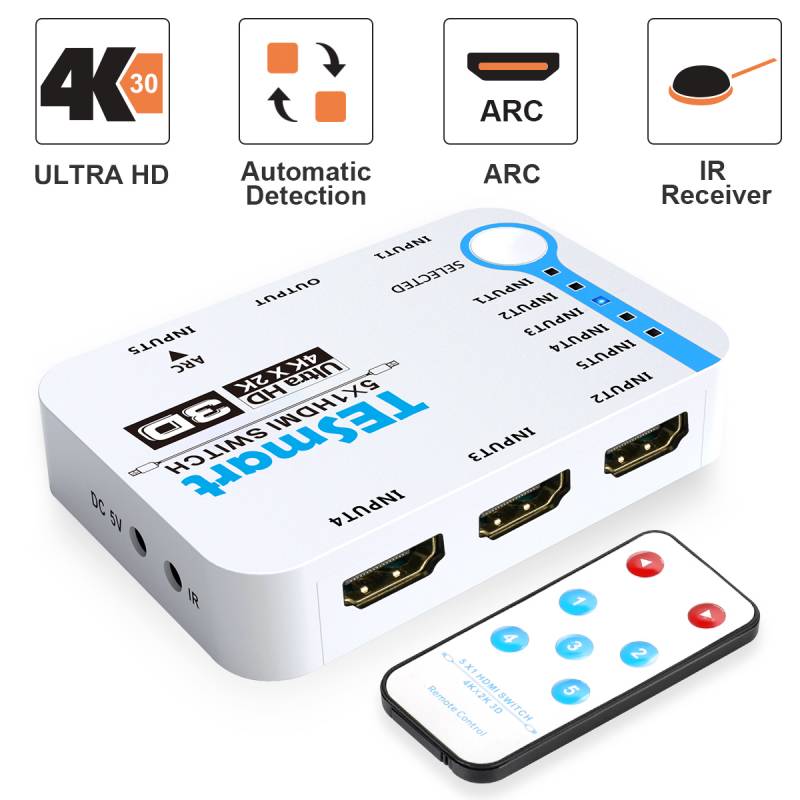

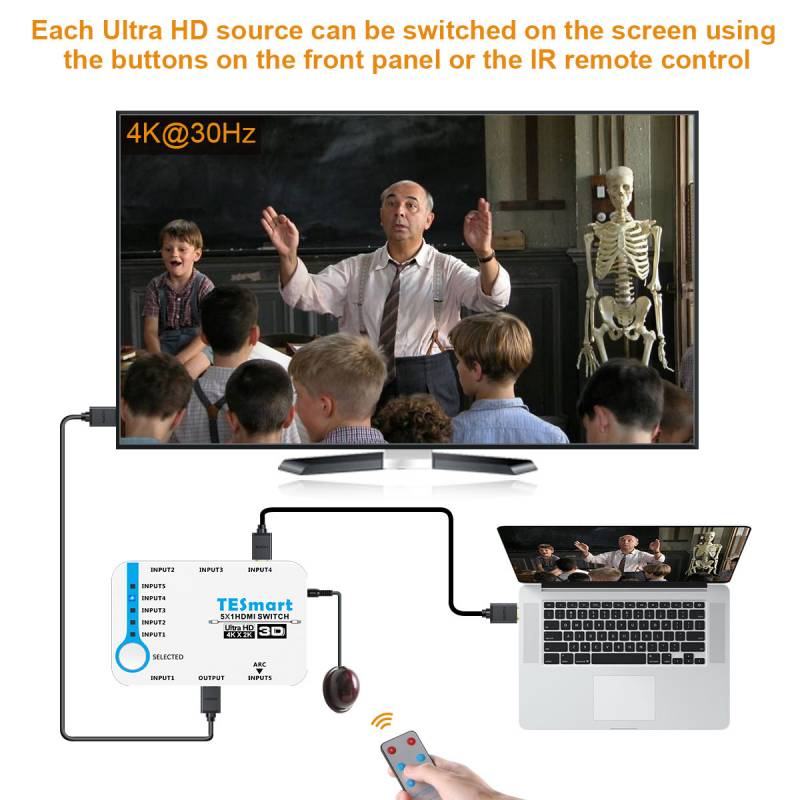

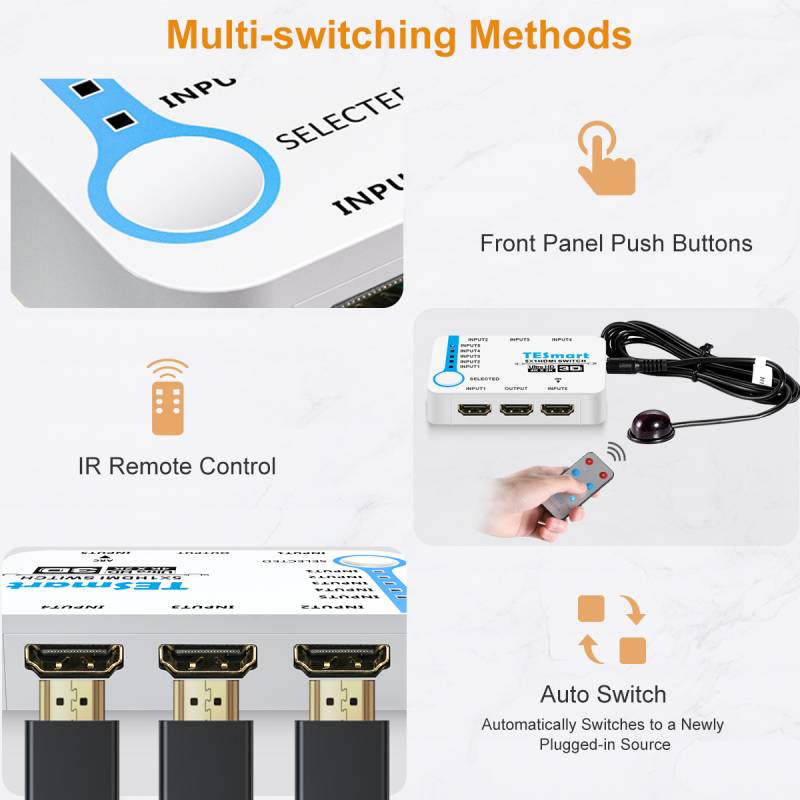

The 5 Ports HDMI Switcher HSW0501A10, allows up to five Ultra HD or Full HD sources to be routed to one Ultra HD display. This product supports resolutions up to 4K (3840 x 2160 @ 30Hz). HDCP, ARC, Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™ are also supported. Each Ultra HD source can be switched to the display using the front panel push-button control or the IR remote. Support automatic input source detection, when attach new input device to the switcher, the switcher will switch to this just plugged in source automatically.

List price： 0.00

Price： 0.00

#HSW0501A10

The 5 Ports HDMI Switcher HSW0501A10, allows up to five Ultra HD or Full HD sources to be routed to one Ultra HD display. This product supports resolutions up to 4K (3840 x 2160 @ 30Hz). HDCP, ARC, Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™ are also supported. Each Ultra HD source can be switched to the display using the front panel push-button control or the IR remote. Support automatic input source detection, when attach new input device to the switcher, the switcher will switch to this just plugged in source automatically.

Download the specification

Features

● With 5 HDMl inputs and 1 HDMI output

● Support resolution up to 4K@30Hz

● Support fast video switch among ports

● Support 36 bit/pixel deep color, data rate up to 10.2Gbps

● Support input auto detection

● Support ARC

● Support 8KV ESD protection

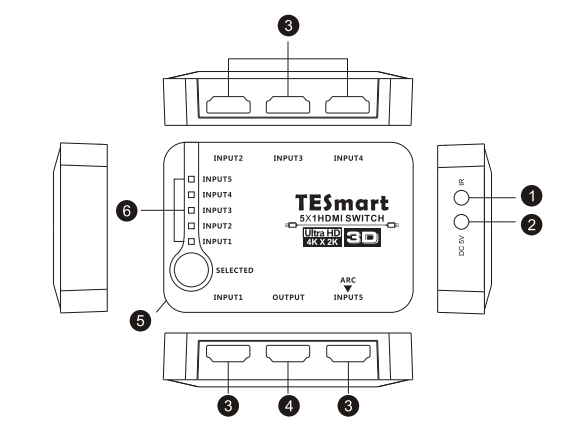

Panel Description

1.IR Receiver	4.HDMI output
2.DC 5V	5.Input selection button
3.HDMI inputs	6.Input connection status

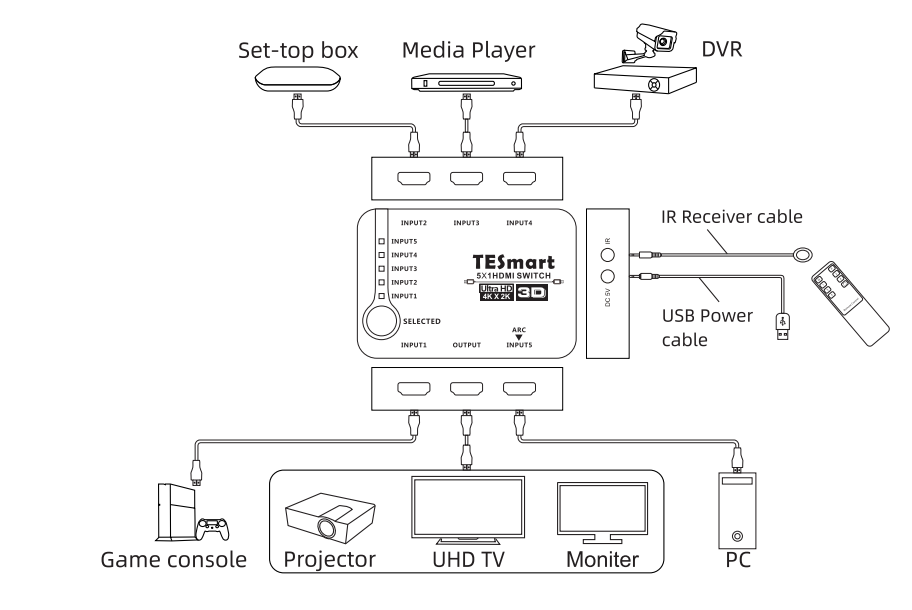

Connection Diagram

Specification

HSW0501A10	5x1 HDMI Switcher with IR
Technical
HDCP compliance	Yes
Auto to get EDID	Yes
Data rate	10.2 Gbps
Max. Resolution	3840*2160P@30Hz
Audio support	Surround sound(up to 7.1ch) or stereo digital audio
ESD protection	Human body model - ±8kV (Air-gap discharge)
Input	5* HDMI Type A, 1* IR receiver
Output	1* HDMI Type A
Mechanical
Chasing material	Plastics
Power supply	DC 5V 1A or powered by HDMI
Operating/Storage temperature	0 to 70 degree/-40 to 85 degree
Operating Humidity	10 to 90% RH
Product	Dimension	88(L) x 60 (W) x 19 (H) mm
	Weight	60g
Item	Dimension	157 (L) x 90 (W) x 76 (H) mm
	Weight	226g
Carton	Dimension	490 (L) x 360 (W) x 360 (H) mm
	Quantity	48pcs
	Total Weight	11.698kg
