HDMI to AV Converter

HDMI to AV Converter

#H2A0101W00

HDMI to AV converter, convert HDMI signal to CVBS video and L/R audio. Supports NTSC and PAL video system according to the setting of the DIP-switch. It can be used at home theatre.



0.00
0.00


#H2A0101W00

HDMI to AV converter, convert HDMI signal to CVBS video and L/R audio. Supports NTSC and PAL video system according to the setting of the DIP-switch. It can be used at home theatre.




  Features


l  HDMI 1.3 compliant

l  Support additional power supply by mini USB cable

l  Support NTSC and PAL video system.

l  Support HDMI input resolution: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 480i/60Hz, 480P/60Hz, 576i/60Hz, 576P/60Hz, 720P50/60Hz, 1080i50/60Hz, 1080P50/60Hz.

l  L/R stereo audio output

l  Power on cable

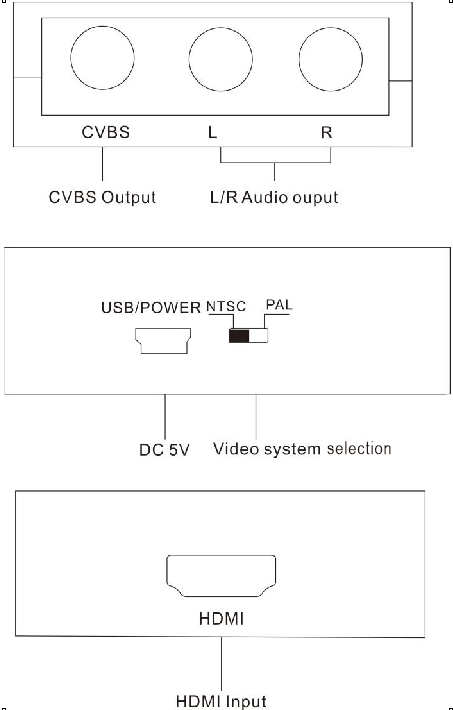

  Panel Description

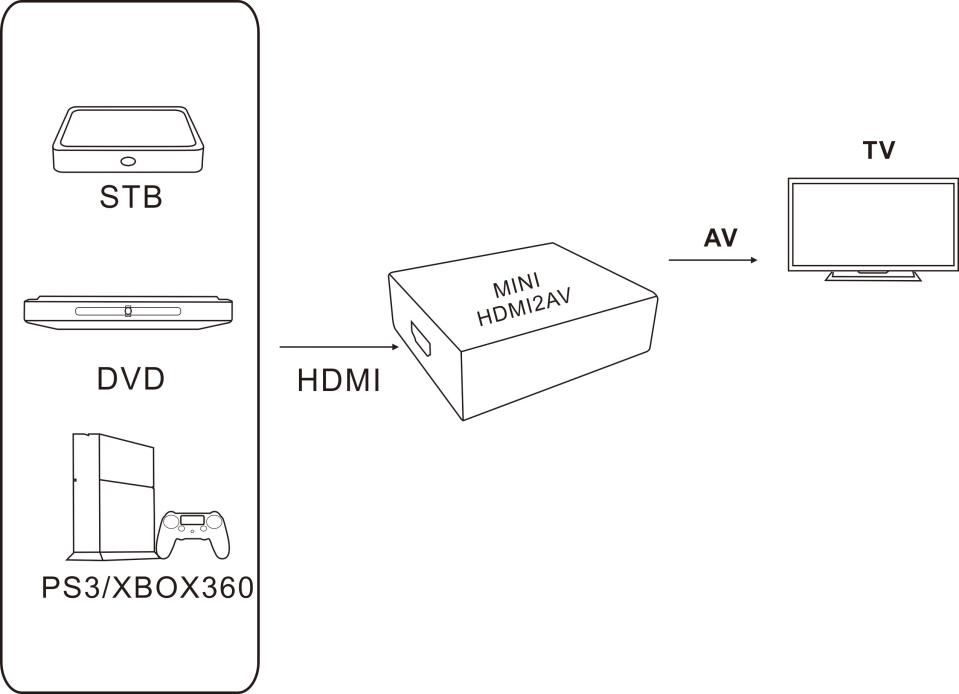

   Connection Diagram





  Specification



H2A0101W00

HDMI to AV Converter

Technical:

Support TV systems

NTSC-M,NTSC-J,PAL

Data rate

10.2 Gbps

Input Resolution

640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 480i/60Hz, 480P/60Hz, 576i/60Hz, 576P/60Hz, 720P50/60Hz, 1080i50/60Hz, 1080P50/60Hz.

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

1* HDMI type A

Output

3* RCA Jack ( Video &  L/R Audio)

Mechanical:

Chasing material

Plastics

Product Dimensions

66(D)x55(W)x20(H)mm

Item Weight

40g

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH

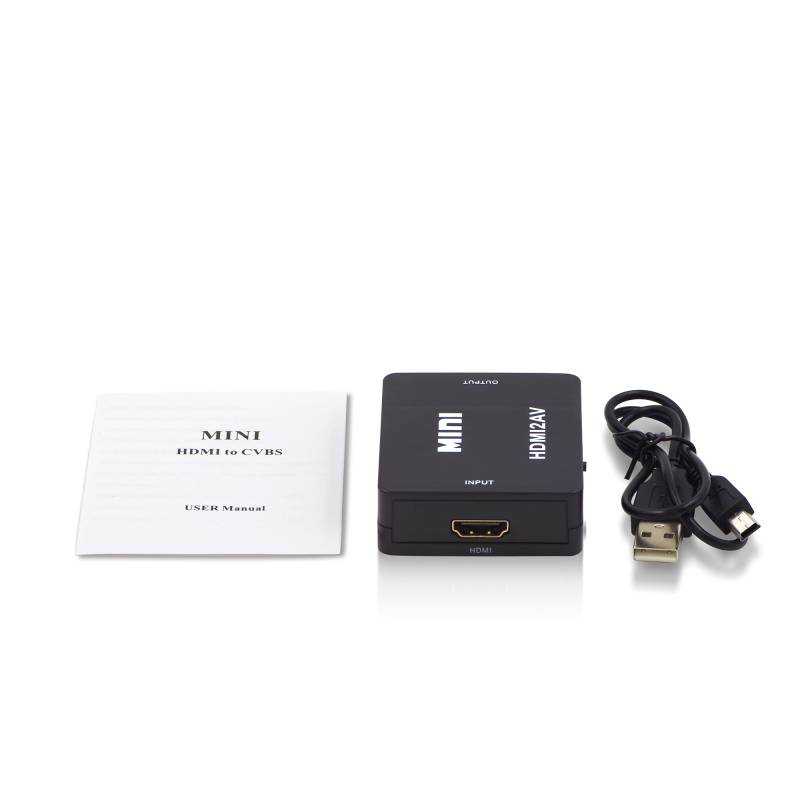

  Packing List


1 * HDMI to AV Converter

1 * Mini USB Cable (Power supply)

1 * User Manual
