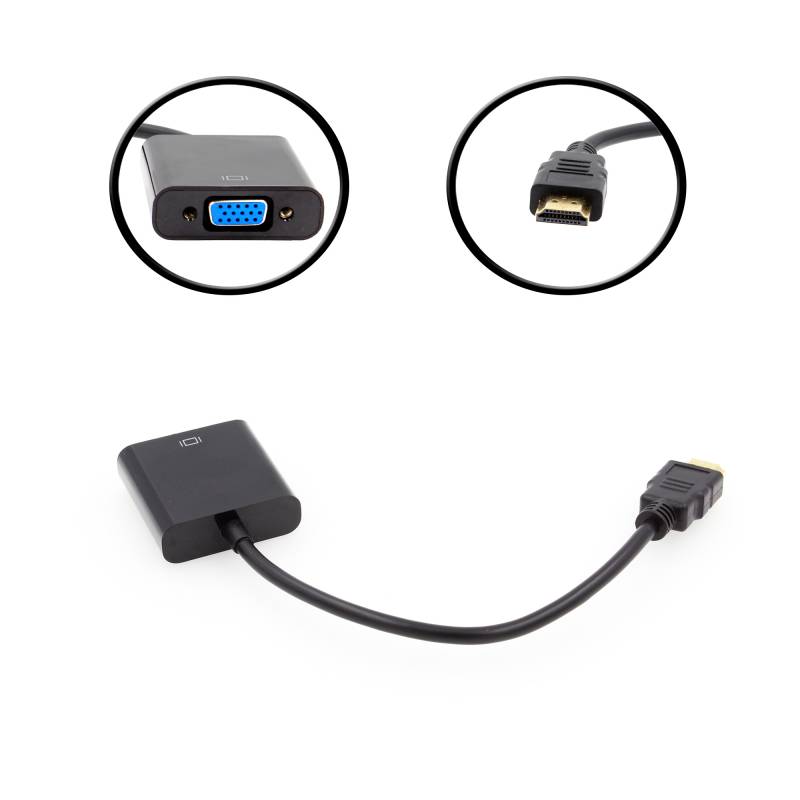

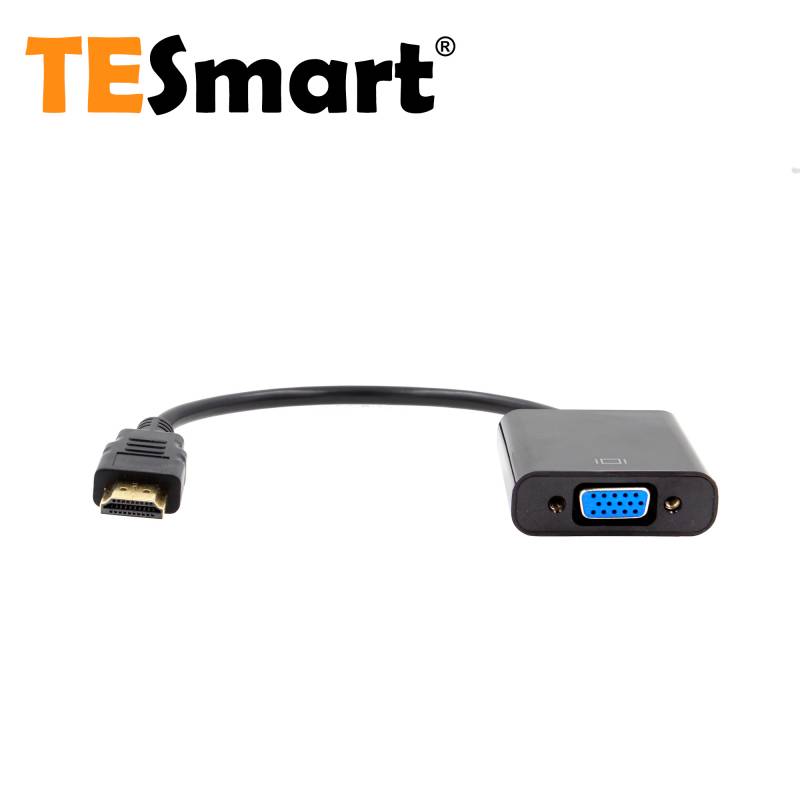

HDMI to VGA Adapter

HDMI to VGA Adapter

#H2V0101W00

This product is HDMI to VGA adapter, converts HDMI signal to VGA signal. With the use of the adapter, the output signal can be connected to the VGA input, for example, monitor, projector and other devices.

0.00
0.00


#H2V0101W00

This product is HDMI to VGA adapter, converts HDMI signal to VGA signal. With the use of the adapter, the output signal can be connected to the VGA input, for example, monitor, projector and other devices.


  Features


l  Plug and play, easy to use

l  Power supply from HDMI cable

l  Automatically color space conversion

l  Support input and output resolution up to 1920*1080@60Hz

l  Well anti-interference ability

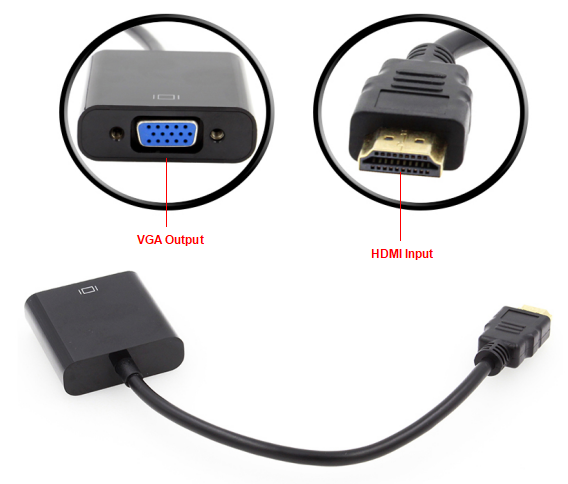

  Panel Description



Note:The conversion of the product is unidirectional, should not be used as VGA to HDMI converter.

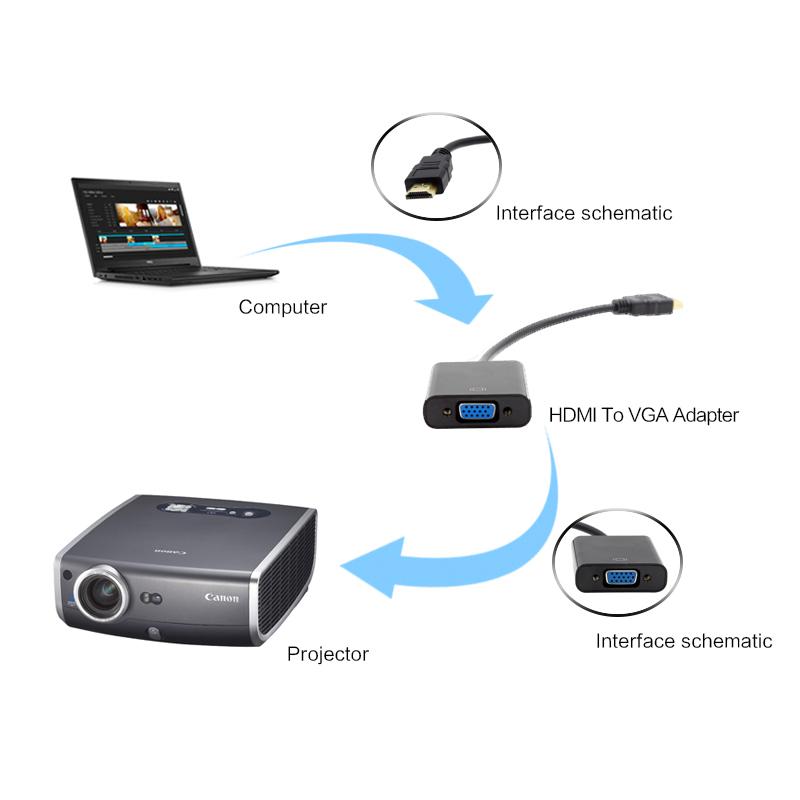

   Connection Diagram



  Specification



H2V0101W00

HDMI to VGA Adapter

Technical

HDCP compliance

Yes

Data rate

10.2 Gbps

Max. Resolution

1920*1080@60Hz

ESD protection

Human body model - ±8kV (Air-gap discharge)

Input

1* HDMI Type A

Output

1* VGA

Mechanical

Chasing material

Plastic

Product Dimensions

250 (L) x 45 (W) x 15 (H) mm

Item Weight

55g

Power supply

DC 5V 1A

Operating/Storage temperature

0 to 70 degree/-40 to 85 degree

Operating Humidity

10 to 90% RH


  Packing List


1 *  HDMI to VGA converter

1 *  User manual
